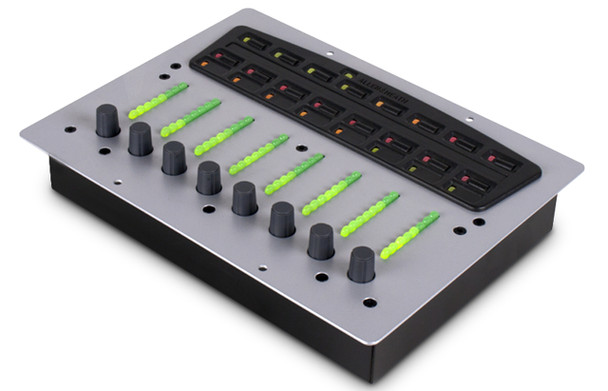

Allen & Heath AH-PL-10 Rotary Module

The PL-10 is a compact mixer interface with 8 rotary encoders and LED ladder displays, making it possible to mix live events within the iDR system. Its ideal for creating and controlling an output mix of cross-point groups. The PL-10 can be assigned to read and adjust different mixes, as the LED bars indicate the levels managed by the iDR unit. The unit can be hand-held, or flange-mounted into a table or wall. As the PL-10 has encoders rather than faders, it can respond to changes in levels made from other controllers.

Features:

• PL-10 interfaces with the AllenHeath PL-Anet serial port.
• Multiple PL-10 units can be daisy chained together along with other PL-Anet devices using CAT5 cable.
• PL-10 control and indicator functions are programmed using the iDR System Manager software.
• PL-10 is ideal as a remote mix controller
• 8 Rotary Encoders can be configured individually for continuous input, output, group, crosspoint level control or monitor level.
• Each rotary encoder has 8 LEDs displaying the control position.
• 16 Switches, arranged as two per rotary encoder, can be configured as combinations of level up/down, mute toggle, polarity toggle, audio monitor select, or preset recall.
• 24 LED indicators, arranged as three per fader, can be configured as combinations of 3 colour signal meters, mute status, channel on indication, level sensing or preset related 3 colour LED indication.
• A single 3 colour Status LED displays PLAnet power and communication status.
