Description
AB4000 EW
Beyond all limits
AB4000 EW is a high-performance antenna booster to compensate signal loss on long antenna cables. One AB4000 EW can compensate 3.5 to 17.5 dB of cable attenuation. Up to two boosters can be cascaded in case of extremely long cable runs. The AB4000 EW comes in a rugged, waterproof metal housing and features an in-line power LED display and cable length adjustment switches. It works with all active and passive AKG antennas, RA4000 B/EW, RA4000 EW, SRA2 B/EW and SRA2 EW, and operates in a frequency range from 470MHz to 952MHz.
General Specifications
- Switching bandwidth (from/to)
- 470 to 952 MHz
- Operating temperature range
- -10 to 50 Celsius
Dimensions
- Length
- 110 mm
- Height
- 50 mm
- Width
- 50 mm
- Net Weight
- 150 g
Antenna Input
- Amount
- 1
- Type
- BNC
- Gender
- Female
- Note
- RF input (50 Ohms)
- Recommended load impedance
- 50 Ohms
Antenna Output
- Amount
- 1
- Type
- BNC
- Gender
- Female
- Note
- RF output (50 Ohms)
- Recommended load impedance
- 50 Ohms
Design
- Finish
- black
- Body
- metal
Related Products
AKG
MDA1 AKG
$91.00
MDA1 AKG
Description
Adapter connector AKG®
The MDA1 AKG adapter connector AKG® link
$91.00
AKG
AKG AKG Lyra Multipattern USB Condenser Microphone
MSRP:
$140.00
$99.00
The Lyra fulfills the needs of those looking for both a studio-quality sound and an effortless setup that avoids mixers, preamps, audio interfaces, and things of that ilk. As such, the mic offers...
MSRP:
$140.00
$99.00
AKG
AKG AKG C214 Large-Diaphragm Cardioid Condenser Microphone
MSRP:
$619.00
$399.00
AKG C214 Large-Diaphragm Condenser Microphone is designed to record lead vocals, drums, acoustic instruments, and guitar amplifiers in the studio, on stage, or in broadcasting situations. Conceived...
MSRP:
$619.00
$399.00
AKG
AKG AKG C636 WL1 Master Reference Condenser Vocal Microphone Head
MSRP:
$765.38
$625.00
The C636 WL1 Master Reference Condenser Vocal Microphone Head from AKG features a cardioid polar pattern and a 24-carat, gold-plated capsule that is housed in a rugged zinc alloy housing. It is...
MSRP:
$765.38
$625.00
AKG

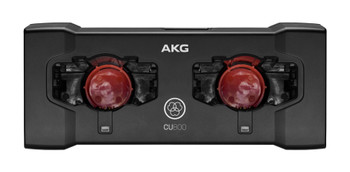

AKG CU800 Charging Unit
