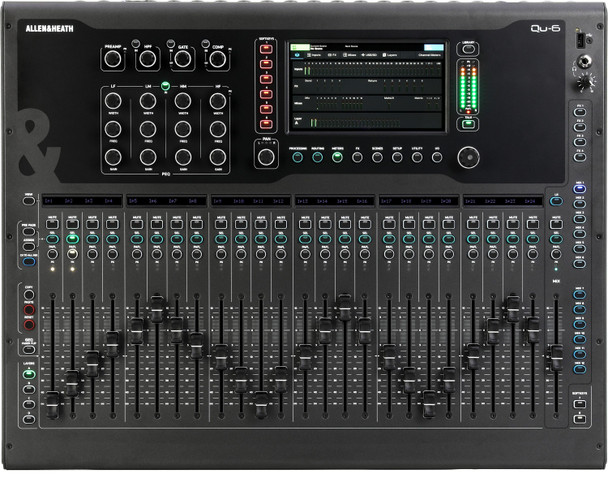

Allen & Heath Qu-6 38-channel Digital Mixer

Allen & Heath Qu-6 Digital Mixer – Compact Power with Studio-Grade Performance

The Allen & Heath Qu-6 combines the portability of a compact mixer with the advanced XCVI processing found in Allen & Heath’s flagship SQ and dLive series. This 38-input/24-output, 96kHz console delivers pristine sound with six Multi-FX engines, each featuring dedicated returns, and versatile Everything I/O connectivity for maximum flexibility. A 7-inch capacitive touchscreen, vibrant channel strip displays, four user-definable layers, and eight programmable SoftKeys make intuitive control effortless.

Equipped with 24 premium digitally controlled mic preamps, the Qu-6 offers ultra-low noise, transparent performance, and musical warmth. Hands-on operation is enhanced by 25 smooth 100mm motorized faders, a thoughtfully designed interface, and an efficient layout tailored for live sound production.

Flexible I/O and Recording Options
The Qu-6 provides 36 mix inputs (32 mono channels linkable for stereo and two stereo channels) and 16 outputs, including XLR, TRS, and AES3 digital connections. A 32x32 USB-C audio interface allows seamless multitrack recording and playback with or without a computer, while the SD card slot supports up to 32-channel recording and playback at 48kHz (16 channels at 96kHz).

Key Features:

• 38-in/24-out, 96kHz digital mixer with XCVI FPGA processing
• 6 Multi-FX engines with dedicated returns for studio-quality effects
• Everything I/O connectivity for flexible setups and expansion
• 7-inch capacitive touchscreen with vivid channel strip displays
• 4 user-definable layers and 8 programmable SoftKeys
• 24 digitally controlled mic preamps for low-noise, high-fidelity audio
• 25 motorized 100mm faders for intuitive, hands-on mixing
• USB-C and SD card recording/playback, plus USB-A stereo interface
• Remote control via free Windows, MacOS, iOS, and Android apps

Tech Specs:

• Type: Digital Mixer
• Channels: 38
• Inputs: 24 x XLR-1/4" combo (mic/line), 4 x 1/4" stereo
• Outputs: 2 x XLR main, 14 x XLR direct, 2 x 1/4" alt, 1 x XLR AES/EBU
• Phantom Power: 24 channels
• USB: 1 x USB-A, 1 x USB-C (32x32 recording/playback)
• Remote: 1 x Footswitch
• Faders: 25 x 100mm motorized
• EQ: 4-band parametric
• Screen: 7-inch capacitive touchscreen
• Dimensions: 24" W × 18.7" D × 8.4" H
• Weight: 28.43 lbs.

The Qu-6 delivers the performance of a full-sized digital console in a compact, user-friendly design, ideal for live sound engineers seeking power, flexibility, and portability.
