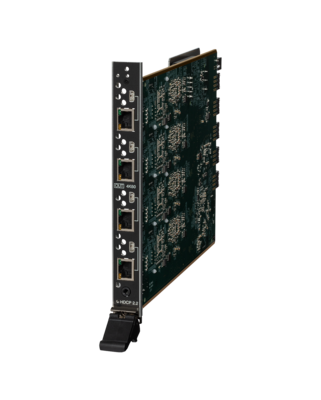

AMX DGX-O-DXL-4K60 Enova DGX DXLink 4K60 Twisted Pair Output Board

The AMX Enova DGX DXLink 4K60 Output Board (DGX-O-DXL-4K60) supports HDMI 2.0 features and is HDCP 2.2 compliant, delivering full 4K60 4:4:4 video with High Dynamic Range (HDR) for optimal image quality and pixel-for-pixel reproduction without chroma subsampling. Each board provides four connections to transmit audio and video to DXLink Twisted Pair Receivers while simultaneously passing bi-directional control, USB 2.0, and Ethernet signals over a single Cat6, Cat6A, or Cat7 twisted pair cable. DXLink Power is available to supply connected receivers. The board is compatible with Enova DGX 800, DGX 1600, DGX 3200, and DGX 6400 enclosures.

Picture Perfect
Enova DGX DXLink 4K60 Input and Output boards maximize the performance of source and display devices, fully supporting HDMI 2.0 and HDCP 2.2 standards.

HDR and Deep Color Support
These boards support HDR10 and 36-bit Deep Color, delivering the richest, most lifelike video.

Ever-Evolving Platform
Existing Enova DGX enclosures can be upgraded with new DGX DXLink 4K60 twisted pair boards and endpoints, ensuring a future-proof system that evolves with technology.

HDBaseT Compatibility
DGX DXLink 4K60 boards comply with the HDBaseT standard, allowing integration with third-party HDBaseT sources and displays. When advanced DXLink features are not needed, direct HDBaseT connections can reduce system costs.

Common Applications
The DGX DXLink 4K60 Output Board is ideal for extending high-quality 4K60 4:4:4 video in environments such as:

• Educational institutions transmitting AV content within or between classrooms.

• Corporate facilities distributing video and audio throughout meeting spaces or campuses.

• Healthcare facilities providing high-resolution video in training rooms, labs, or simulation environments.

• Government and security operation centers where multiple analysts monitor and analyze video from diverse sources for threat assessment and operational purposes.
