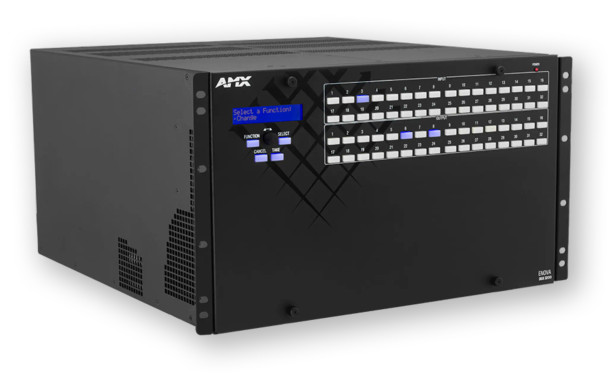

AMX DGX3200-ENC Enova® DGX 3200 Enclosure

The Enova DGX 3200 Enclosure (DGX3200-ENC) is a digital media switcher designed to handle 4K and Ultra High Definition (UHD) content. This powerful unit includes a NetLinx® NX Integrated Controller, redundant power supplies, and supports installation of Enova DGX video input and output boards, along with optional audio-switching boards. Each video board provides four connections, and the enclosure can accommodate up to eight input and eight output boards, enabling a maximum 32x32 matrix configuration.

The DGX 3200 introduces several enhanced features, including automatic DXLink endpoint setup, single IP addressing for multiple endpoints, and a redesigned web interface for easier installation and configuration. Advanced Audio Switching Boards add support for audio breakaway and parametric EQ on each output.

More than just a modular media switcher with a built-in controller, the Enova DGX 3200 serves as the central hub for a fully integrated AV solution, managing and distributing both analog and digital audio and video signals, including HDMI/HDCP, control signals, and Ethernet. HDCP integration is seamless, with plug-and-play functionality enabled by AMX’s exclusive InstaGate Pro® Technology, eliminating tool requirements, delays, and key limitations. The system works with a comprehensive suite of Enova DGX boards, DXLink transmitters and receivers, over twisted pair or fiber, providing end-to-end distribution. A built-in NetLinx NX Controller and embedded Ethernet switch allow centralized management of sources and displays across the environment.

InstaGate Pro not only removes HDCP delays but also allows key-limited sources to be freely routed to all connected HDCP-compliant displays, overcoming limitations in large-scale installations. SmartScale® Technology on each output automatically adjusts video to the native resolution of connected displays, simplifying integration and ensuring consistent, high-quality video regardless of signal type. With analog-to-digital conversion, video scaling, and high-speed digital switching, the system delivers reliable performance across all video formats.

The Enova DGX can transmit analog or digital AV signals, including HDMI with HDCP, as well as control signals, over single-mode fiber up to 10 km or multimode fiber up to 300 meters. Using DXLink twisted pair transmitters and receivers, it can also deliver AV and power up to 100 meters over standard cabling.

Common Applications:

• Ideal for simplifying AV control and distribution in large spaces such as lecture halls, auditoriums, hotels, casinos, museums, and stadiums.

• Suited for multi-room or flexible spaces where several collaboration areas share a single DGX controller.

• Fiber capabilities allow long-distance transmission across multiple floors or buildings, making it perfect for campuses, high-rise buildings, or large facilities.

• Secure distribution over fiber makes it suitable for environments with strict data security requirements, such as government, banking, and network operations centers.
