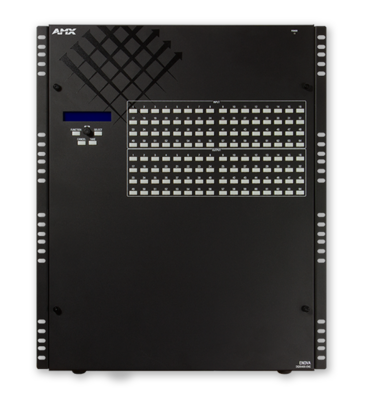

AMX DGX6400-ENC Enova® DGX 6400 Enclosure

The Enova DGX 6400 Enclosure (DGX6400-ENC) is a high-performance Digital Media Switcher designed to support 4K and Ultra High Definition (UHD) content. It features a NetLinx® NX Integrated Controller, redundant power supplies, and can accommodate Enova DGX video input and output boards along with optional audio-switching boards. Each video board provides four connections, and the enclosure can house up to sixteen input and sixteen output boards, supporting a maximum 64x64 matrix.

The DGX 6400 introduces advanced features including automatic DXLink endpoint setup, single IP addressing for multiple endpoints, and a streamlined web interface for easier installation and configuration. New Audio Switching Boards provide audio breakaway and parametric EQ on each output.

More than a modular media switcher with a built-in controller, the DGX 6400 serves as the core of a complete integrated AV solution, distributing analog and digital audio and video, including HDMI/HDCP, control, and Ethernet. HDCP integration is seamless with AMX’s InstaGate Pro® Technology, eliminating key limitations and delays. SmartScale® Technology ensures video is perfectly scaled for each display, simplifying installation and ensuring consistent image quality.

The system supports full end-to-end distribution using DXLink twisted pair or fiber, delivering AV, control, and power up to 10 km over single-mode fiber, 300 meters over multimode fiber, or 100 meters over twisted pair.

Common Applications

• Large venues such as lecture halls, auditoriums, hotel ballrooms, casinos, museums, and stadiums/arenas.

• Multi-room or configurable spaces where multiple collaboration areas share a single DGX.

• Multi-floor or multi-building campuses and large facilities requiring long-distance AV distribution.

• Secure environments where content protection is critical, including government, banking, or network operation centers.
