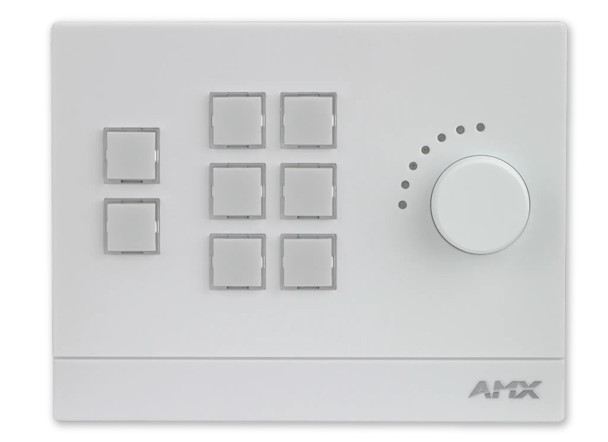

AMX FG2102‑08‑W — MCP‑108‑WH Massio® 8‑Button Ethernet ControlPad with Volume Knob (White)

AMX FG2102‑08‑W — MCP‑108‑WH

Massio® 8‑Button Ethernet ControlPad with Volume Knob (White)

Description

The AMX MCP‑108‑WH is a Massio® series 8‑button Ethernet ControlPad that combines an intuitive user interface with a built‑in AMX control processor. It features eight programmable backlit buttons and a rotary volume knob with push‑to‑mute functionality, all housed in a sleek white wall‑mountable keypad. Designed for professional AV environments such as conference rooms, classrooms, and huddle spaces, it installs into a standard 2‑gang US, UK, or EU back box and is powered via Power over Ethernet (PoE), simplifying cabling and installation.

The MCP‑108‑WH integrates core AMX control technology with modern networking features, making it suitable for both standalone control in smaller rooms and as part of larger AV systems.

Key Features

• 8 Programmable Backlit Buttons
  Provides dedicated control for AV system functions such as power on/off, source selection, lighting presets, and custom macros.

• Rotary Volume Knob with Push‑to‑Mute
  Smooth, ergonomic knob for precise volume adjustment and quick mute activation.

• Ethernet Connectivity with PoE
  Single RJ‑45 port provides both network communication and power via PoE (IEEE 802.3af), eliminating the need for a separate power supply.

• Standard 2‑Gang Wall Mounting
  Designed to fit common US, UK, and EU electrical back boxes for flexible installation.

• Integrated Control Processor
  Built‑in controller supports network‑based automation and integration with AMX systems, including secure communication features.

• Multiple Control Ports
  Local ports typically include RS‑232 and IR/serial outputs for direct control of projectors, displays, and other AV devices.

• LED Volume Indicator
  Visual feedback for volume level via a multi‑segment LED bar graph.

• Flexible Configuration & Programming
  Can be quickly set up using configuration tools or fully programmed for advanced logic and system integration.

• Modern Industrial Design (White Finish)
  Professional, clean appearance that complements contemporary interiors.

Typical Specifications (Summary)

• Dimensions: ~119 mm × 152.5 mm × 26 mm (H×W×D)

• Weight: ~0.41 lb (0.19 kg)

• Mounting: Fits standard 2‑gang US, UK, or EU back boxes

• Power: PoE (37 V–57 V, 802.3af)

• Memory: Built‑in flash and SD storage, onboard RAM for controller functions

• Control Interfaces: RS‑232, IR/Serial, I/O and relay expansion options (varies by setup)
