ATL328 Line Array

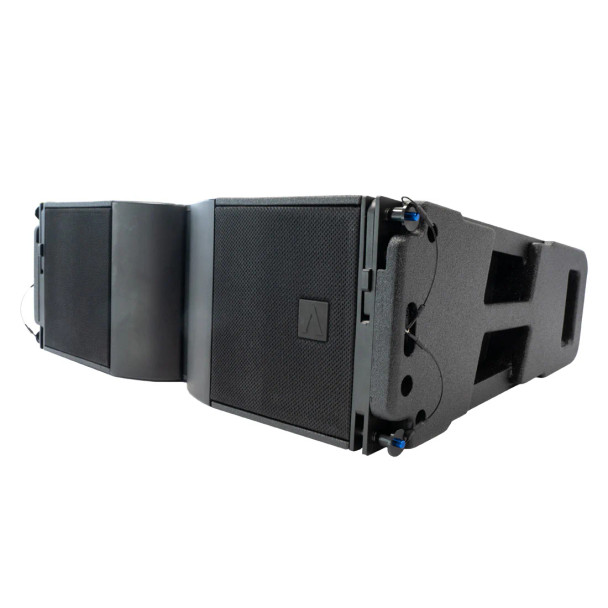

? Avante Audio AKRO ATL328 – 3-Way Active Line Array Speaker

• Type: 3-way active line array module

• Drivers:

  • 2 × 8" neodymium low-mid frequency drivers

  • 1 × coaxial 4" MF + 2.55" HF neodymium compression driver

• Frequency Response: 70 Hz – 20 kHz (-6 dB)

• Maximum SPL: 132 dB peak

• Amplifier:

  • 600 W RMS per channel

  • 1,800 W peak total

  • Class-D + switching with PFC power supply

• DSP:

  • 64-bit multimode with MILAN certification

  • 96 kHz sample rate

  • FIR linear phase & 10-band IIR filters

• Networking: MILAN-certified, supports TCP/IP and AES audio input

• Coverage:

  • 110° horizontal dispersion

  • Vertical dispersion depends on array configuration

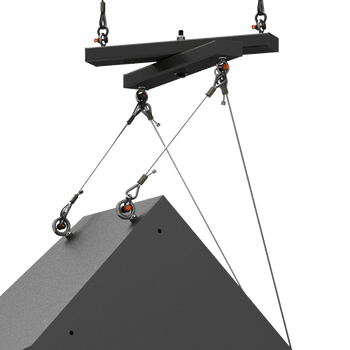

• Rigging: Integrated multi-angle system with ground stacking capability

• Construction: Baltic birch plywood with polyurea finish

• Weight: Approximately 44 lbs (20 kg)
