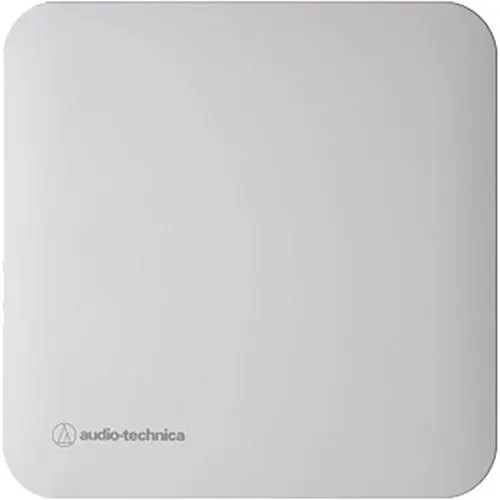

ATW-A410P

The ATW‑A410P is a low‑profile UHF powered wide‑band antenna designed for wall or ceiling installation. It covers a wide frequency range of 470 MHz to 990 MHz. It features a built‑in switchable amplifier with four gain settings (‑10 dB, 0 dB, +6 dB, +12 dB) to compensate for cable loss and varying signal conditions. An LED indicator shows the current gain setting. The BNC output cable can be routed from the top, side or rear, allowing flexible installation. A mounting bracket and screws are included.

Key Features

• Frequency range: 470 MHz to 990 MHz

• Connector: BNC‑J

• Impedance: 50 ohms

• Power requirement: +12 V DC, 60 mA (or less)

• Gain selector: ‑10 dB / 0 dB / +6 dB / +12 dB

• LED indicator for gain setting

• Multiple cable exit configurations: top, side or rear

• Low‑profile design for wall or ceiling mount

• Operating temperature range: –10 °C to +50 °C
