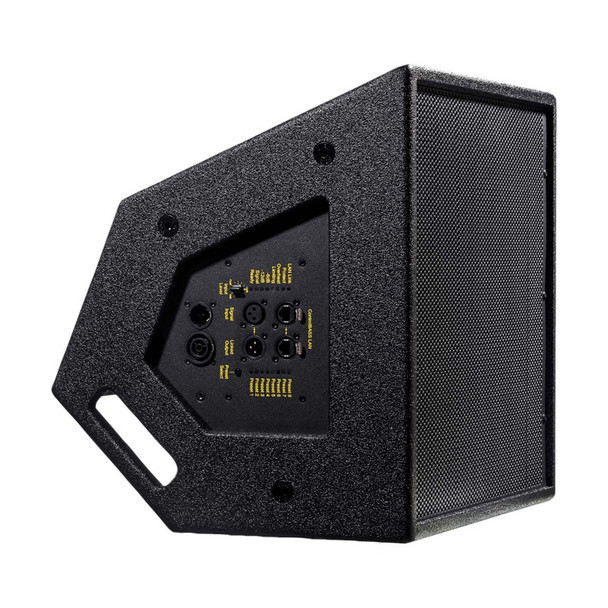

BASSBOSS CCM12-MK3 12" Coaxial Monitor

BASSBOSS CCM12-MK3 Compact Coaxial Stage Monitor

The BASSBOSS CCM12-MK3 is a compact yet powerful 12-inch coaxial stage monitor designed for professional performers who require high output, clarity, and reliability in a portable form factor. Engineered for excellent output relative to its size, it delivers consistent sound coverage and strong resistance to feedback, making it ideal for stage monitoring and nearfield applications.

This 2-way monitor features a coaxial driver design, combining a 12-inch woofer with a centrally mounted compression driver for accurate, point-source sound reproduction. The result is balanced audio with clear highs and defined lows across a wide listening area.

Powered by a 1200W Class-D amplifier, the CCM12-MK3 provides strong performance with efficient operation. Its integrated 96kHz DSP includes multiple onboard presets, along with advanced processing such as EQ, crossover filters, phase alignment, and multi-stage limiting for system protection. Users can expand control and access additional presets through the ControlBASS software, including remote operation and firmware updates.

Designed for versatility, the enclosure supports multiple monitor angles, allowing optimal positioning for different performance scenarios—from front-fill to standing or seated monitoring. The rugged birch plywood cabinet is finished with a weather-resistant coating, while IP-rated connectors and universal power compatibility ensure dependable operation in a variety of environments.

Key Features:

• Compact 12-inch coaxial 2-way stage monitor
• Point-source design for accurate and consistent sound coverage
• 1200W Class-D bi-amped power (850W LF / 350W HF)
• 96kHz DSP with 8 onboard presets and expandable library via software
• Advanced processing: EQ, crossover, phase alignment, and multi-stage limiting
• ControlBASS software support for remote control and preset management
• 80° x 80° symmetrical conical dispersion
• High output with up to 127 dB peak SPL
• Multiple monitor angles (0°, 22.5°, 45°, 67.5°) for flexible placement
• Durable birch plywood cabinet with weather-resistant polyurea finish
• IP65-rated power connections for enhanced reliability
• Dual Ethernet ports with built-in network switch
• Universal power supply (100–240V auto-sensing)
• XLR input and pass-through output
• Integrated handles and pole mount socket for easy setup
