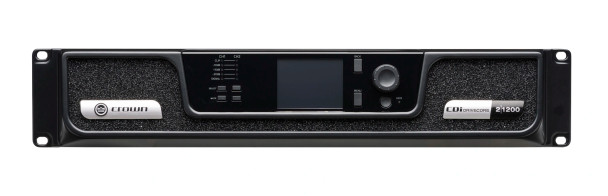

CDi 2|1200 Analog input, 2 channel, 1200W per output channel

The CDi DriveCore Series represents a new generation of amplification, combining strong performance, advanced features, and cost efficiency. Built on technology from Crown’s flagship DriveCore Install amplifiers, the CDi DriveCore 2|1200 is engineered to deliver reliable, simplified operation for large-scale installations such as cinemas, houses of worship, hotels, cruise ships, and similar venues.

Designed for versatility and ease of use, the 2|1200 is a two-channel amplifier equipped with network-based control and monitoring, powerful onboard DSP, and an intuitive front-panel interface. It supports direct connection to up to 100 Vrms speaker systems without the need for output transformers, helping reduce system complexity. To further streamline installation, all CDi DriveCore amplifiers come preloaded with JBL loudspeaker tunings, enabling faster setup and optimized performance.

Specifications

• BLU link: No

• Number of Channels: 2

• Input Sensitivity (full power @ 8 Ω): 0.7 V RMS

• Rated Power Output (per channel @ 4 Ω): 1200 W

• Signal-to-Noise Ratio (analog input, ref. rated power, 100 V, 20 Hz–20 kHz @ 8 Ω): > 104 dB

• Total Harmonic Distortion (full rated power, 20 Hz–20 kHz): 0.35%

• Damping Factor (20 Hz–100 Hz): > 1000

• Frequency Response (8 Ω, 20 Hz–20 kHz): ±0.25 dB

• Crosstalk (below rated power, 20 Hz–1 kHz): > 80 dB

• Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced

• Dimensions (W × H × D): 19 × 3.5 × 14.71 in
  (depth excludes 1.3 in front-panel protrusion)

• Weight: 17.2 lb (7.8 kg)

• Power Supply Connector: 15 A IEC, 100–240 V
