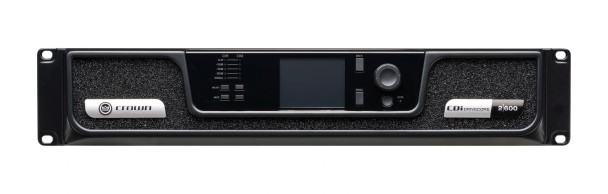

CDi 2|600 Analog input, 2 channel, 600W per output channel

The CDi DriveCore Series marks a new standard in amplification, delivering a powerful combination of high performance, advanced features, and cost efficiency. Leveraging technology from Crown’s flagship DriveCore Install series, the CDi DriveCore 2|600 provides streamlined operation for medium-sized installations, including cinemas, houses of worship, bars, lounges, and more.

The 2|600 is a 2-channel amplifier designed for versatility and ease of use. It features network control and monitoring, sophisticated DSP, a user-friendly front-panel interface, and can drive up to 100 Vrms speaker loads without requiring transformers. Like all CDi DriveCore amplifiers, it comes preloaded with JBL speaker tunings to simplify setup and optimize performance.

Key Features

• DriveCore Technology: Eliminates hundreds of internal components, reducing variability, increasing reliability, and delivering exceptional audio fidelity efficiently.

• Network Control & Monitoring: Full control, configuration, and monitoring via HiQnet Audio Architect over standard TCP/IP networks.

• DSP (Digital Signal Processor):

  • Input routing and delay (up to 1000 ms)

  • 8-band input parametric EQ

  • Crossover

  • 8-band output parametric EQ

  • Output delay (up to 100 ms)

  • LevelMAX™ limiter

• BLU link (BL models only): Send and receive audio channels over HARMAN’s 256-channel, fault-tolerant digital BUS.

• Direct Drive 70/100 Vrms Output: Supports high-impedance 70 V or 100 V speaker systems.

• Front-Panel Interface: Fully configure the amplifier via an intuitive interface.

• GPIO/AUX Port: Control presets, mute channels, monitor faults, and power on/off through a combined GPIO/AUX connection.
