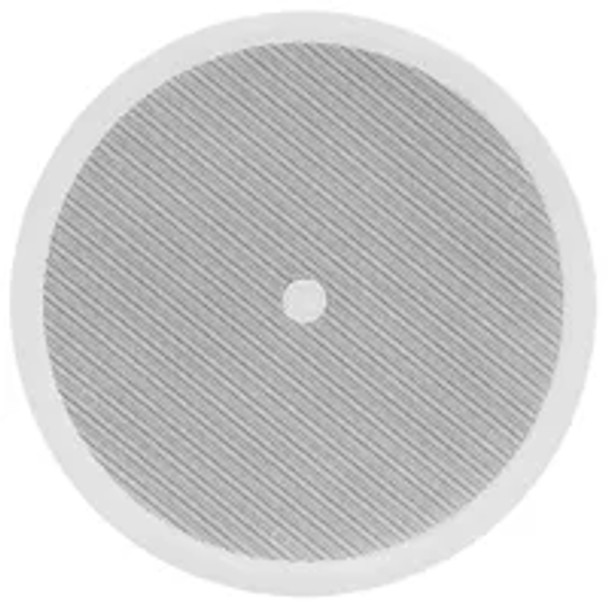

CMR-50T-W

The RCF CMR-50T-W is a two-way in-ceiling monitor / ceiling speaker designed for architectural and installed sound systems. It offers a discreet, elegant presence while delivering full-range audio suitable for both music and announcements. Its coaxial driver configuration (woofer + tweeter aligned) ensures coherent sound across the spectrum.

Its front grille is magnetically mounted for easy removal, exposing the power selector switch for quick adjustment during commissioning or maintenance. Installation is simplified via three long-travel clamps. It supports both low-impedance (8 Ω) and constant-voltage (70/100 V) systems, making it versatile for retrofit or new installs.

⚙ Key Features

• Power Handling: 40 W RMS

• Maximum SPL: 110 dB @ 1 m

• Frequency Response: 80 Hz – 20,000 Hz (–10 dB)

• Coverage (Dispersion): 130° constant directivity conical pattern

• Drivers:
  • 5″ high-power woofer
  • 1″ neodymium dome tweeter

• Cabinet & Build: Self-extinguishing ABS plastic front housing + metal backcan

• Grille: Steel magnetic front grille (removable)
