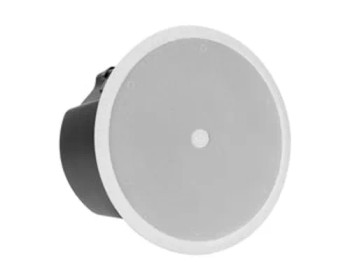

CMR-60T-W

The CMR-60T-W is a multipurpose two-way in-ceiling loudspeaker designed for both background music and voice announcement applications. It features a coaxial driver arrangement (woofer + tweeter) inside a bass-reflex cabinet to deliver balanced full-range audio in a compact form. The design emphasizes aesthetic integration—its magnetic grille and white finish help it blend into ceiling environments. It also includes selectable power taps and compatibility with 70 V / 100 V systems, making it adaptable for distributed audio installations.

Key Features

• Power Handling: 80 W RMS

• Maximum SPL: 114 dB (at 1 m)

• Frequency Response: 70 Hz – 20,000 Hz (-10 dB)

• Coverage / Dispersion: 130° constant directivity (conical)

• Drivers:
   – 6.5″ high-power woofer
   – 1″ neodymium dome tweeter

• Enclosure & Safety:
   – Self-extinguishing ABS plastic body
   – Metal backcan
   – Magnetic steel grille
