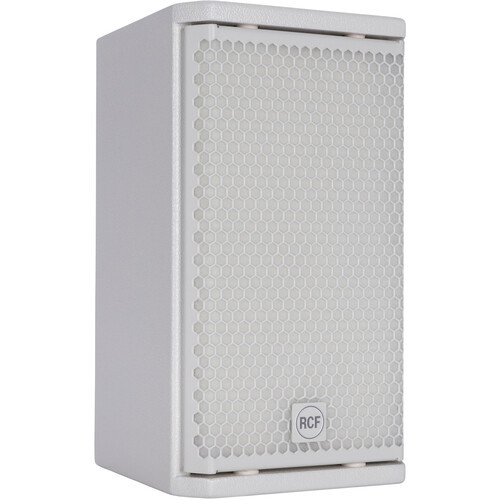

COMPACT M 05-W

The RCF COMPACT M 05-W is a white, passive two-way full-range speaker designed for high-quality sound in fixed installations. It combines elegant design with powerful performance, making it ideal for cafés, restaurants, conference rooms, retail spaces, and other indoor environments where both appearance and clarity matter.

The speaker features a 5-inch woofer and a 1-inch neodymium dome tweeter, delivering balanced sound with wide coverage. Its durable plywood cabinet and steel grille provide professional reliability, while the white finish allows it to blend naturally into bright interiors.

Key Specifications

• Power Handling (RMS): 80 W

• Peak Power: 320 W

• Frequency Response (–10 dB): 70 Hz – 20,000 Hz

• Maximum SPL: 115 dB

• Sensitivity: 89 dB

• Coverage Angle: 120° × 80° (H × V)

• Drivers:
   • 1 × 5″ woofer
   • 1 × 1″ neodymium dome tweeter

• Nominal Impedance: 8 Ω

• Crossover Frequency: 2,200 Hz

• Cabinet Material: Plywood

• Color / Finish: White (RAL 9003)

• Connectors: 4-pole Euroblock (input + link)

• Mounting Points: M6 / M8 inserts for wall or ceiling brackets

• Dimensions (H × W × D): 303 × 172 × 191 mm

• Weight: 4.2 kg (≈ 9.3 lbs)
