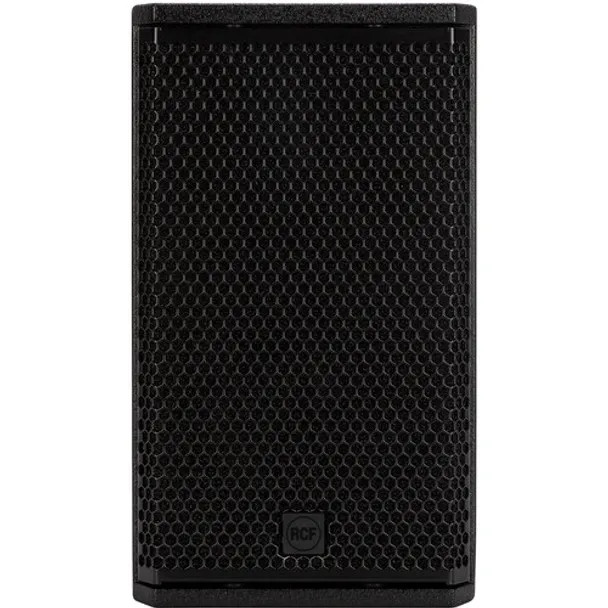

COMPACT M 06

he Compact M-06 is a passive two-way full-range speaker meant for installed commercial use, including shops, restaurants, galleries, corporate spaces, etc. It offers a balance of compact form, good output, and clarity—suitable for near-field use or as part of a larger sound system. It’s built with quality materials and includes multiple mounting points to enable wall or ceiling installation. Available in black or white cabinet finishes.

Key Specifications

• Power Handling (RMS): 100 W

• Peak Power Handling: 400 W

• Maximum SPL @ 1 m: 116 dB

• Frequency Response (−10 dB): 60 Hz – 20,000 Hz

• Coverage / Directivity: 120° horizontal × 80° vertical

• Sensitivity: 90 dB

• Drivers:
   • 6-inch woofer with 1.5-inch voice coil
   • 1-inch dome tweeter (neodymium)

• Nominal Impedance: 8 ohms

• Crossover Frequency: ~ 2,200 Hz

• Cabinet Material: High-quality plywood

• Grille: Steel with cloth backing

• Connectors: 4-pole Euroblock input (plus link output)

• Mounting Hardware: Installation points on rear, top, and bottom; rigging inserts (M6 & M8)

• Dimensions (H × W × D): ~ 365 × 211 × 232 mm (≈ 14.37″ × 8.31″ × 9.13″)

• Weight: ~ 5.5 kg (≈ 12.13 lbs)
