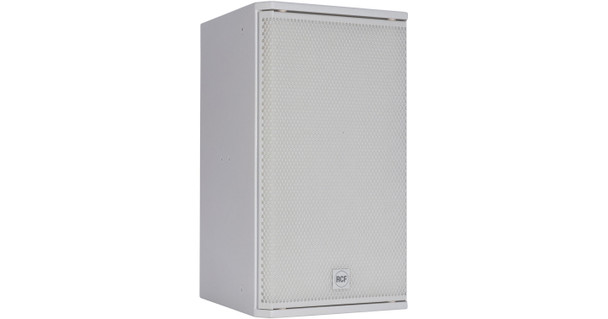

COMPACT M 10-W

The RCF COMPACT M 10 is a passive 10-inch two-way loudspeaker designed for professional audio applications. It delivers high-fidelity sound with a wide frequency response, making it suitable for both foreground and background audio in various environments.

Key Specifications

• Configuration: Passive 2-way

• Power Handling: 300W RMS / 1200W peak

• Impedance: 8 ohms

• Frequency Response: 60 Hz – 20 kHz (-10 dB)

• Max SPL: 128 dB

• Coverage: 90° horizontal x 70° vertical (rotatable horn)

• Drivers:

  • 10" high-power woofer

  • 1.4" voice coil compression driver

• Sensitivity: 98 dB (1W @ 1m)

• Connectors: 4-pin Euroblock input and link output

• Mounting: Multiple rigging points (rear, top, and bottom panels)

• Enclosure: High-quality plywood with steel front grille

• Dimensions: 442 x 257 x 284 mm (17.4 x 10.1 x 11.2 inches)

• Weight: 13.5 kg (29.76 lbs)
