JBL Control 12C/T Overview

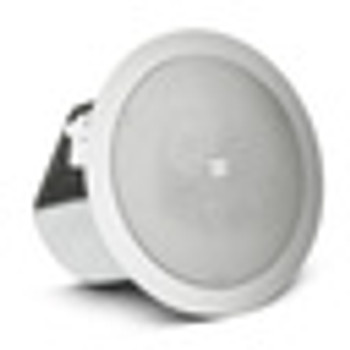

The JBL Control 12C/T is a white pair of 3-inch passive ceiling speakers from the Professional Series, engineered to provide clear, well-distributed sound in low to medium volume settings such as offices, shops, hotels, classrooms, and other public spaces.

Each speaker features a full-range 3" driver capable of handling 40W of continuous program power. With a peak SPL of 103 dB and a frequency range from 68 Hz to 17 kHz (-10 dB), the Control 12C/T ensures consistent, high-quality audio coverage. Its 130° conical dispersion pattern minimizes the number of speakers needed by maximizing coverage.

Equipped with a built-in 15W multi-tap transformer, the speaker supports both 70V and 100V distributed audio systems, and includes a bypass mode for standard 8-ohm installations. The unit comes with a pre-installed backcan and a UV-resistant, paintable ABS baffle for hassle-free installation and visual flexibility.

Key Features

• Ideal for background music and paging in cafés, retail stores, offices, hotels, airports, and educational facilities

• 3" full-range driver with a high-temperature Kapton voice coil former and aluminum coupling ring for reduced distortion and better high-frequency performance

• Optimized motor structure and cone design provide smooth, consistent sound even off-axis

• Durable butyl rubber surround and water-resistant polypropylene cone for long-lasting use

• Quick-install blind-mount backcan with vented, paintable, UV-resistant baffle (UL94-V0 rated)

• 15W multi-tap transformer for 70V/100V distributed systems, with 8-ohm bypass for direct connection

• 130° wide dispersion and 68 Hz – 17 kHz frequency response ensure even sound coverage

• Removable locking connector with screw terminals and loop-through capability

• Dual strain relief system secures both cable and flexible conduit
