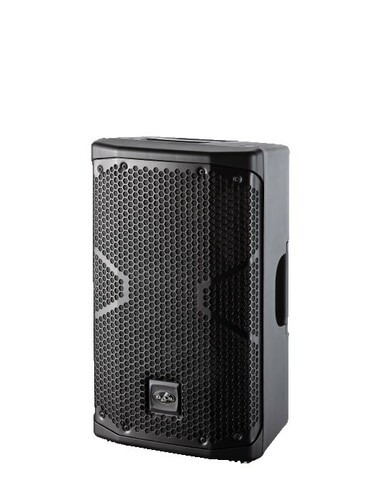

DAS Audio, ALTEA-408-WR-T100 Passive 8" Two-Way Weather Resistant Polypropylene Speaker 150W RMS 600W Peak 90° x 90° Horn IP54 w/ Transformer 100V Black, ALTEA-408-WR-T100

DAS Audio ALTEA-408-WR-T100 Passive Weatherized Loudspeaker (70V/100V)

The ALTEA-408-WR-T100 is a passive 2-way loudspeaker engineered for fixed installations that require both weather resistance and distributed audio capability. Designed for seamless integration with external DSP and amplification, particularly from the DAS Integral Series, this model delivers consistent and high-quality sound performance across a wide range of applications.

Equipped with an 8-inch low-frequency transducer featuring a 2-inch voice coil, the system provides accurate bass response and musical clarity. High frequencies are reproduced by a precision 1-inch compression driver, ensuring detailed and balanced output. The 90º x 90º horn coverage allows for wide and uniform sound dispersion, making it ideal for speech and music reproduction in various environments.

This WR-T100 variant incorporates a weather-resistant enclosure along with a built-in transformer for 70V/100V line systems, making it perfectly suited for outdoor and commercial installations where durability and flexible system design are essential.

Constructed from robust polypropylene, the enclosure is lightweight yet highly durable. With integrated rigging points and a trapezoidal design, the speaker can be easily mounted or used as a stage monitor, offering versatility for installers and audio professionals.

Key Features:

• Passive 2-way full-range loudspeaker
• Weatherized design for outdoor and exposed installations
• Built-in 70V/100V transformer for distributed audio systems
• 8” low-frequency driver with 2” voice coil
• 1” compression driver for clear high frequencies
• 90º x 90º wide dispersion horn
• Compatible with external DSP and DAS Integral Series amplifiers
• Lightweight polypropylene enclosure
• Angled cabinet for stage monitor use
• M8 rigging points for flexible mounting
• Stand-mount compatible

Applications:

• Concerts and corporate A/V
• Portable sound and live clubs
• Theaters, auditoriums, and concert halls
• Houses of worship
• Outdoor and commercial installations

Specifications:

Performance:

• Frequency Range (-10 dB): 70 Hz – 20 kHz
• Coverage: 90º (H) x 90º (V)
• RMS Power Handling: 150 W
• Peak Power Handling: 600 W
• Sensitivity (1W/1m): 94 dB SPL
• Maximum SPL: 122 dB

Recommended Equipment:

• Amplifiers: INTEGRAL-A402, INTEGRAL-A1002, INTEGRAL-A1004
• Processor: DSP-226

Connectors:

• Input: speakON NL4
• Output: speakON NL4

Enclosure:

• Material: Polypropylene
• Design: Trapezoidal
• Rigging: M8 points
• Color: Black

Dimensions & Weight:

• Size (H x W x D): 480 x 280 x 260 mm (18.9 x 11.0 x 10.2 in)
• Weight: 8.5 kg (18.7 lb)

Components:

• LF Driver: 8GV
• HF Driver: M-32
