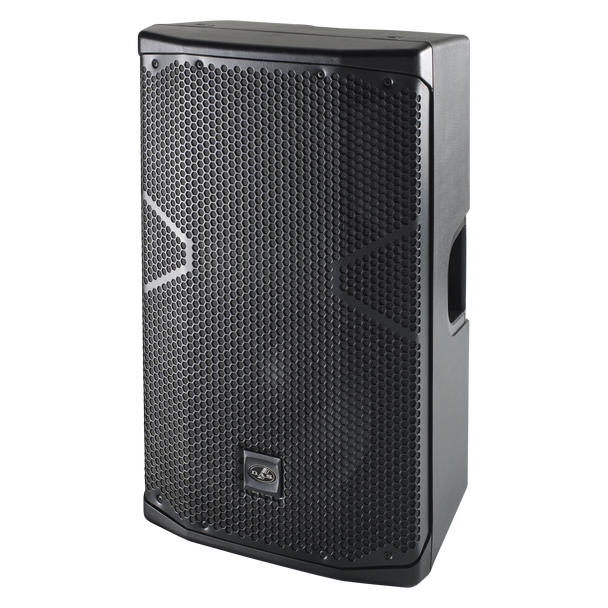

DAS Audio ALTEA-712A Powered 12" 2-Way Full-Range Speaker 750W Continuous 1500W Peak Polypropylene Enclosure 90° x 60° Black w/ Wireless Streaming via DASlink, ALTEA-712A

DAS Audio ALTEA-712A – High-Powered 12" Portable P.A. System

Portable. Powerful. Precision Engineered. The ALTEA-712A is a high-powered model in DAS Audio’s ALTEA Series, designed for medium- to large-scale events where clarity, headroom, and versatility are critical.

At its core, the system features a 1500 W peak Class D two-channel amplifier, delivering extended bandwidth, wide dynamic range, and exceptionally low distortion. Signal processing is managed through Digital Finite Impulse Response (FIR) filters, ensuring precise, balanced, and consistent audio reproduction across the full frequency spectrum.

The DAScontrol™ interface provides complete system configuration via a high-end 24-bit DSP and rear-panel LCD screen, allowing adjustment of voicing presets, input/output levels, EQ modes, delay, and source mixing. Additionally, the DASlink™ app enables wireless high-definition stereo streaming and remote monitoring from mobile devices, offering ultimate convenience for modern setups.

The ALTEA-712A employs high-performance transducers for exceptional sound. A DAS 12F4 loudspeaker reproduces low frequencies with accuracy and deep, powerful bass, while high frequencies are handled by the M-28 FEM-optimized 1" compression driver, delivering smooth, clear, and articulate treble reproduction. This combination ensures balanced, high-fidelity sound suitable for music, speech, and live reinforcement applications.

Applications:

• Live sound reinforcement
• Concerts, clubs, and events
• Houses of worship and institutional audio
• Speech and vocal amplification

Features:

• 12" low-frequency driver with deep, powerful bass
• 1" FEM-optimized M-28 compression driver for high frequencies
• High-powered 1500 Wpeak Class D two-channel amplifier
• 24-bit FIR DSP with configurable presets and EQ modes
• DAScontrol™ LCD interface for full system adjustment
• Wireless streaming and monitoring via DASlink™
• Lightweight, portable, and stage-ready enclosure
• Ergonomic handles and M8 rigging points

Specifications:

Performance:

• Frequency Range (-10 dB): 65 Hz – 20 kHz
• Horizontal Coverage (-6 dB): 90º
• Vertical Coverage: 60º
• Maximum Peak SPL at 1 m: 131 dB

Amplifier & Electronics:

• Nominal Amplifier Power (RMS): 750 W
• Peak Amplifier Power: 1500 W
• Input Type: Balanced
• Input Impedance: 20 kΩ
• Input Sensitivity: 1.95 V (+8 dBu)
• Audio Signal Input: 2 x Female XLR
• AUX Input: 3.5 mm mini jack
• Signal Loop-Thru: Male XLR
• Control: DAScontrol™ & DASlink™ wireless
