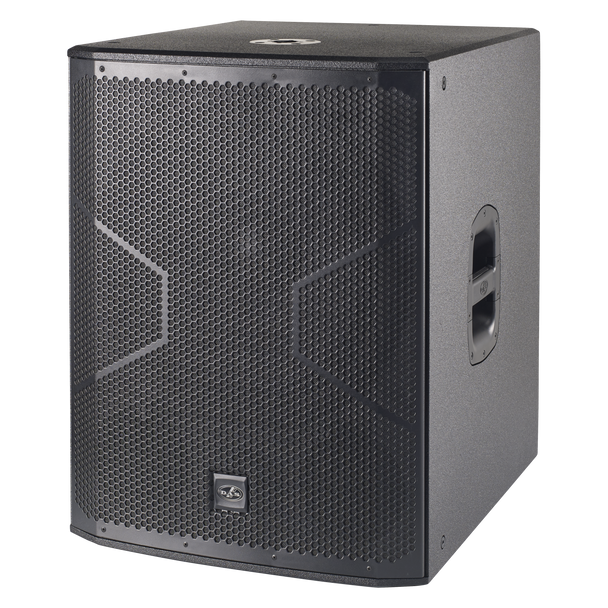

DAS Audio ALTEA-718A Powered 18" Wooden Subwoofer 600W Continuous 1200W Peak Black w/ DAScontrol™, ALTEA-718A

DAS Audio ALTEA-718A – Powered 18" Subwoofer System

Deep. Powerful. Precise. The ALTEA-718A is a powered subwoofer designed to complement DAS Audio’s ALTEA full-range systems, delivering extended low-frequency response with precision and power.

At the heart of the system is the DAS 18FW4 bass loudspeaker, featuring a FEM-optimized high-efficiency design and an extended 3" voice coil for long excursion. Advanced cooling is achieved through a vented pole piece and multiple apertures in the speaker’s backplate, minimizing power compression and ensuring high acoustic output over extended periods.

The subwoofer is driven by a cutting-edge 1200 Wpeak Class D amplifier, providing ample power for demanding applications. The rear panel includes balanced input connectors and stereo loop-thru outputs for easy integration with ALTEA satellite systems. Digital presets via the DAScontrol™ interface allow for quick and precise tuning, ensuring seamless setup with full-range ALTEA systems.

The ALTEA-718 is the passive variant, intended for use with external amplification and outboard DSP, offering flexibility for custom installations.

Applications:

• Live music and concert reinforcement
• Clubs, festivals, and A/V events
• Integration with ALTEA full-range cabinets
• Stage and fixed installations

Features:

• 18" DAS 18FW4 high-excursion LF driver
• FEM-optimized, high-efficiency speaker design
• Extended 3" voice coil for long excursion
• Ventilated pole piece and backplate apertures for reduced power compression
• 1200 Wpeak Class D amplifier (powered version)
• Balanced inputs and stereo loop-thru outputs
• DAScontrol™ interface with digital presets for easy system integration
• Compact and durable enclosure for portable or fixed use

Specifications (ALTEA-718A Powered Version):

• LF Driver: 18FW4
• Amplifier: 1200 Wpeak Class D
• Frequency Response: 35 Hz – 150 Hz
• Max SPL: 137 dB
• Input: Balanced XLR
• Outputs: Stereo loop-thru XLR
• Enclosure: Birch plywood with ISO-flex coating
• Rigging: M8 points
• Dimensions (H x W x D): 650 x 520 x 570 mm
• Weight: 38 kg

ALTEA-718 Passive Version:

• Designed for external amplification and outboard DSP integration
