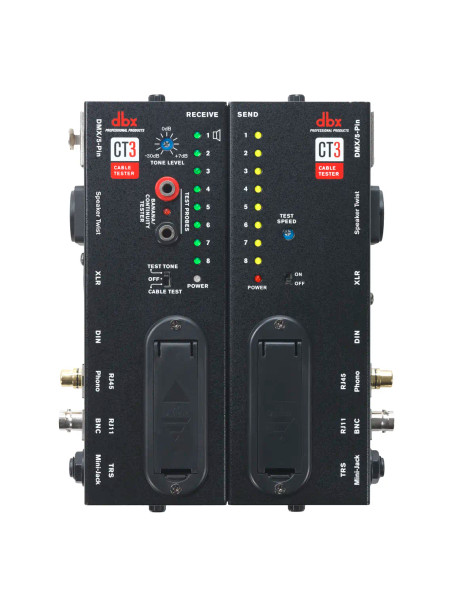

DBX CT-3 Advanced Cable Tester

The dbx CT3 is a professional-grade cable tester designed to quickly and accurately check a wide range of cable types. Built for versatility, it supports numerous common connectors including RJ45, RJ11, MIDI, Speaker Twist, XLR, RCA/Phono, BNC, DIN, TRS, TS, DMX, and Banana. Its two-piece design separates into a Sender and Receiver, making it ideal for testing long runs and permanently installed cables with ease.

Capable of testing cables with up to 8 pins, the CT3 also features a built-in test tone generator, simplifying signal tracing and verification. It allows straightforward testing between different connector formats, while bright LEDs and an audible beeper on the Banana connector continuity tester provide clear, immediate feedback. Housed in a rugged chassis, the CT3 is built to withstand demanding studio and live-sound environments.

Features

• Tests cables with up to 8 pins

• Two-piece sender/receiver design for installed or long cable runs

• Integrated test tone generator

• Easy testing between different connector formats

• Banana connector continuity tester with LED and audible beeper

• Heavy-duty, road-ready construction for long service life

• (2) DMX (5-pin) connectors for 5-pin to 5-pin testing

• (2) BNC connectors for 2-pin to 2-pin testing

• (2) RCA/Phono connectors for 2-pin to 2-pin testing

• (2) XLR connectors (1 male, 1 female) for 3-pin to 3-pin testing

• (2) MIDI (5-pin DIN) connectors for 5-pin to 5-pin testing

• (2) Speaker Twist connectors for 4-pin to 4-pin testing

• (2) Banana connectors for 1-pin to 1-pin testing

• (2) ¼” (6.3 mm) TRS/TS connectors for 3-pin to 3-pin testing

• (2) RJ45 connectors for 8P8C modular cable testing

• (2) ⅛” (3.5 mm) TRS/TS connectors for 3-pin to 3-pin testing
