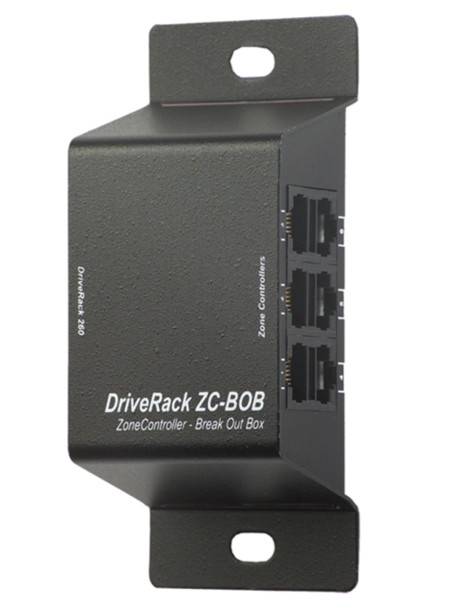

DBX ZC-BOB Wall-Mounted Break out Box

The Zone Controllers expand the functionality of the DriveRack® and ZonePRO™ systems by providing flexible and reliable control options. These nine controllers use analog DC voltage to handle a wide range of logic functions, including zone source selection, volume adjustment, muting, program or scene changes, and fire safety muting. Designed for ease of installation, they connect using standard, low-cost CAT5 cables with universally accepted RJ-45 connectors, supporting cable runs of up to 1,000 feet. This makes the ZC Zone Controllers a practical and refined solution for system contractors.

Specifications

• Connectors: (2) RJ-45

• Series Wiring: Maximum cable length depends on the number of Zone Controllers

  • 3 Zone Controllers: up to 600 ft

  • 6 Zone Controllers: up to 300 ft

• Parallel Wiring (using ZC-BOB):

  • Up to 6 Zone Controllers: up to 1,000 ft

• Parallel Wiring Cable: CAT5 or CAT5E with nominal DCR of 28.6 Ohm/m (Ohm/1000 ft), rated VW-1 or higher

• Safety Certifications: UL 60065, IEC 60065, EN 55013, E60065
