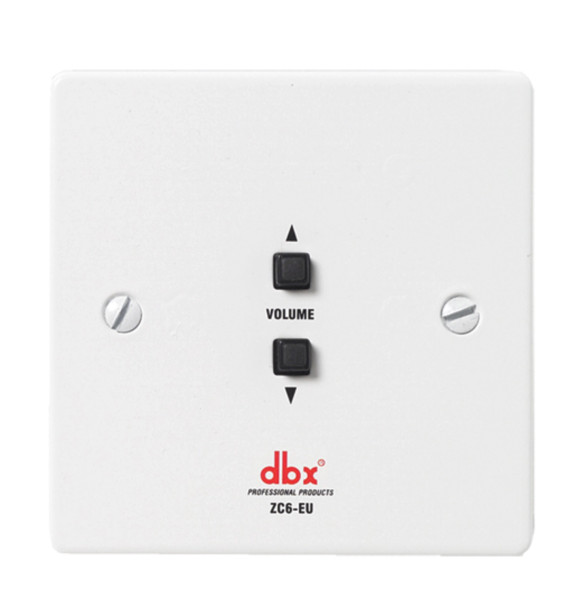

DBX ZC6 EU Wall-Mounted Zone Controller

The Zone Controllers expand the functionality of the DriveRack® and ZonePRO™ systems by providing versatile analog DC voltage control for tasks such as zone source selection, volume adjustment, muting, program or scene selection, and fire safety muting. Using standard CAT5 cabling with RJ-45 connectors, these controllers support distances up to 1,000 feet, offering a simple and reliable solution for contractors.

The ZC-6 is designed as a programmable volume controller specifically for dbx ZonePRO™ devices, providing precise control over audio levels.

Architects’ and Engineers’ Specifications

The remote controller shall provide computer-programmable push-button up/down volume control for dbx ZonePRO™ devices. It shall include DIP switches for device identification and connect to the processing device via CAT5 cable using RJ-45 connectors. The specified unit shall be the dbx ZC-6-EU remote controller.

Specifications

• Connectors: (2) RJ-45

• Series Wiring: Maximum cable length depends on the number of Zone Controllers

  • 3 Zone Controllers: 600 ft

  • 6 Zone Controllers: 300 ft

• Parallel Wiring (using ZC-BOB): Up to 6 Zone Controllers: 1,000 ft

• Parallel Wiring Cable: CAT5 or CAT5E, 28.6 Ω/m nominal DCR, rated VW-1 or higher

• Safety Certifications: UL 60065, IEC 60065, EN 55013, E60065
