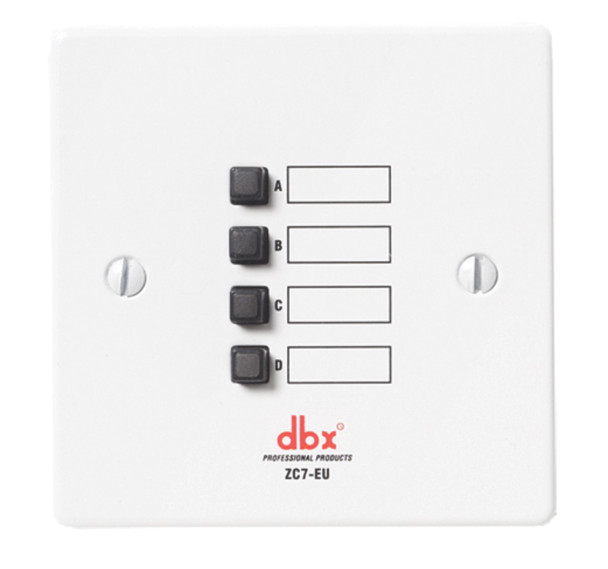

DBX ZC7 EU Wall-Mounted Zone Controller

The Zone Controllers enhance the functionality of the DriveRack® and ZonePRO™ systems by providing versatile analog DC voltage control for a variety of tasks, including zone source selection, volume adjustment, muting, program or scene selection, and fire safety muting. They connect using standard CAT5 cables with RJ-45 connectors, supporting distances of up to 1,000 feet, offering contractors a practical and cost-effective solution.

The ZC-7 is a programmable push-to-talk page assignment controller designed specifically for dbx ZonePRO™ devices, allowing precise and flexible paging control.

Architects’ and Engineers’ Specifications

The remote controller shall provide programmable push-to-talk page assignment for dbx ZonePRO™ devices. It shall feature DIP switches for device identification and connect to the processing system via CAT5 cable with RJ-45 connectors. The specified model shall be the dbx ZC-7-EU remote controller.

Specifications

• Connectors: (2) RJ-45

• Series Wiring: Maximum cable length varies with the number of Zone Controllers

  • 3 Zone Controllers: 600 ft

  • 6 Zone Controllers: 300 ft

• Parallel Wiring (using ZC-BOB): Up to 6 Zone Controllers: 1,000 ft

• Parallel Wiring Cable: CAT5 or CAT5E, 28.6 Ω/m nominal DCR, rated VW-1 or higher

• Safety Certifications: UL 60065, IEC 60065, EN 55013, E60065
