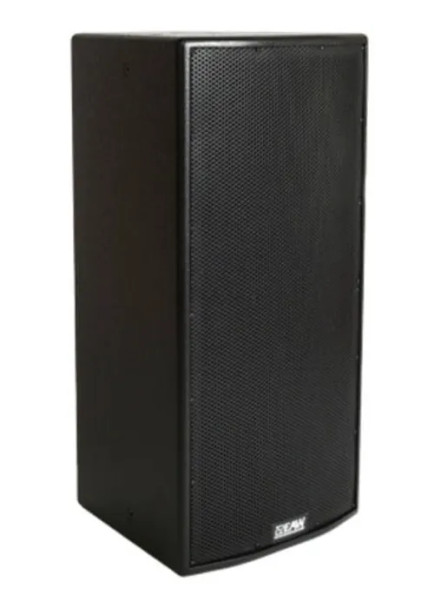

EAW MK2364i BLACK

The EAW MK2364i BLACK is a professional-grade passive 2‑way full‑range loudspeaker designed for permanent installation or portable sound reinforcement. It’s part of EAW’s MK Series of high‑output, trapezoidal enclosures grown for smaller venues and distributed coverage applications. It combines powerful low frequency output with clear, controlled high frequencies and consistent pattern control throughout its operating range.

Key Features & Highlights

Driver Configuration

• Low Frequency (LF) driver: 1 × 12" cone

• High Frequency (HF) driver: 1.4" exit compression driver with 3" voice coil

• Horn‑loaded HF to maintain directivity and clarity.

Performance

• Operating Frequency Range: ~65 Hz – 16 kHz

• Maximum sound pressure level (SPL): up to 141 dB

• Nominal beamwidth: 60° horizontal × 45° vertical for focused coverage

• Power handling: 600 W LF & full range; 150 W HF @ 8 Ω.

Operating Modes

• Single‑amp (LF/HF) or bi‑amp (LF and HF separately) configurations with external DSP filters and high‑pass control.
