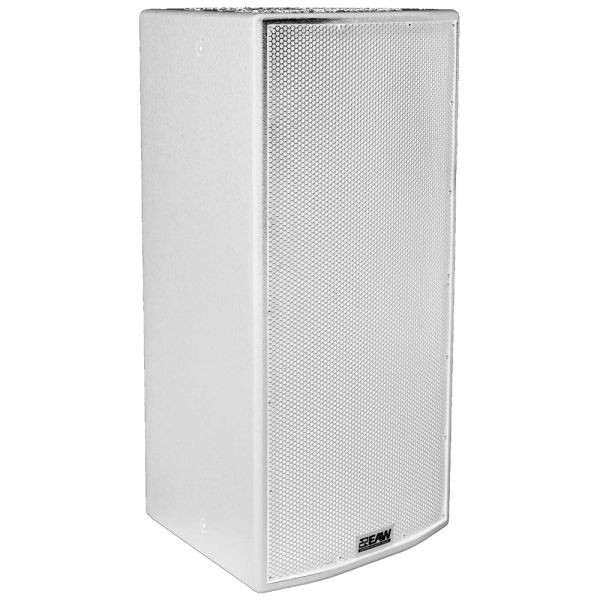

EAW MK2366i WHITE

The EAW MK2366i White is a passive 2‑way full‑range loudspeaker designed for professional audio reinforcement. It is part of the MK2300i Series, which are high‑performance passive systems engineered for permanent installation or portable use in venues like houses of worship, auditoriums, theaters, meeting rooms, corporate AV systems, and distributed fill applications. The white finish allows the speaker to blend seamlessly into light‑colored interiors. It delivers clear, high‑fidelity sound with wide and even coverage across the listening area.

Key Features & Performance

Design & Drivers

• Passive two‑way speaker with a 12‑inch low‑frequency driver and 1.4‑inch exit compression driver for high frequencies.

• Horn‑loaded HF section with 60° × 60° coverage for controlled directivity.

• Trapezoidal enclosure suitable for wall, stand, or array installations.

Coverage & Sound

• Wide nominal beamwidth ensures uniform sound distribution.

• Frequency range covers roughly 65 Hz to 17 kHz.

• Maximum sound pressure level up to about 139 dB.

Operational Flexibility

• Can be used in single‑amp or bi‑amp modes.

• Beamwidth‑matching crossover maintains even power response and smooth driver integration.

• External DSP (processor) recommended for optimized crossover and filtering.
