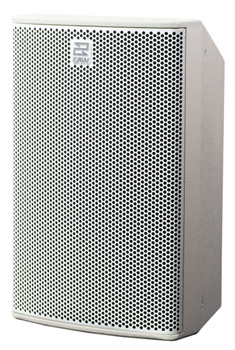

EAW MKC120 WHITE

The EAW MKC120 White is a high‑performance, passive two‑way coaxial loudspeaker designed for professional audio reinforcement in installations and portable sound systems. It combines advanced coaxial driver technology with a compact, versatile enclosure that blends seamlessly into venues where both aesthetics and sound quality matter. This white‑finished model is suitable for environments such as auditoriums, restaurants, houses of worship, corporate spaces, and performance venues where visual integration is important. The coaxial design delivers controlled directivity and uniform coverage across the listening area, maintaining clarity and fidelity even at high sound pressure levels. The design supports various mounting and deployment options for flexible installation.

Key Features and Specifications

Acoustic and Performance

• Passive 2‑way coaxial loudspeaker system with a 12‑inch low‑frequency driver and a compression high‑frequency driver.

• Patented Concentric Summation Array (CSA) horn for consistent tonal balance and precise pattern control throughout the coverage area.

• Frequency response typically covers approximately 48 Hz – 20 kHz for full‑range performance.

• Maximum sound pressure level (SPL) of up to 135 dB for high‑output applications.

• Nominal beamwidth: 90° horizontal × 60° vertical, rotatable to suit installation orientation.
