EAW assive 12" 3-Way Bi-Ampable Speaker. 2 x 12" 3" Voice Coil LF, 1 x 2" Exit 3.5" Voice Coil MF and 1 x 2" Exit 1.75" Voice Coil HF. Horz: 60˚ Vert: 45˚. White

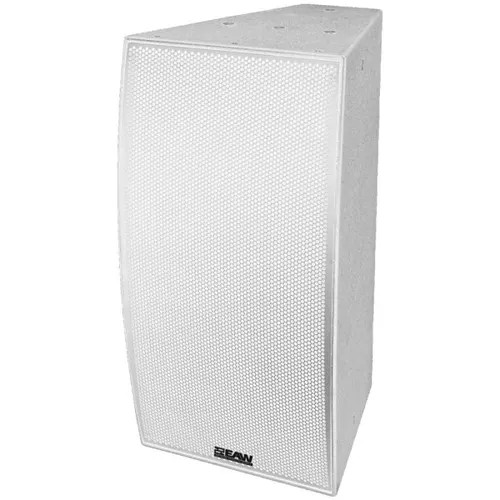

The EAW MKD1264 WHITE is a high-performance full-range installation loudspeaker designed for professional sound reinforcement in venues ranging from large stadiums to smaller music clubs and performance spaces. It delivers high output, broadband pattern control, and exceptional sound fidelity. The loudspeaker incorporates advanced acoustic technologies to maintain consistent coverage and clarity across the entire listening area.

Features

• High-output loudspeaker designed for professional installation applications

• Supports passive or bi-amplified operating modes

• Dual 12-inch low-frequency cone drivers with vented 3-inch voice coils

• Compression midrange driver with 2-inch exit and 3.5-inch voice coil

• Compression high-frequency driver with 2-inch exit and 1.75-inch voice coil

• QX-inspired compression driver design for extended bandwidth

• Broadband pattern control for consistent sound coverage

• Nominal coverage pattern of 60° horizontal × 45° vertical

• Maximum sound pressure level of 147 dB

• Frequency response range of 47 Hz – 20 kHz

• Power handling: 1200 W (LF/MF/HF at 8 ohms)

• Terminal block input connection
