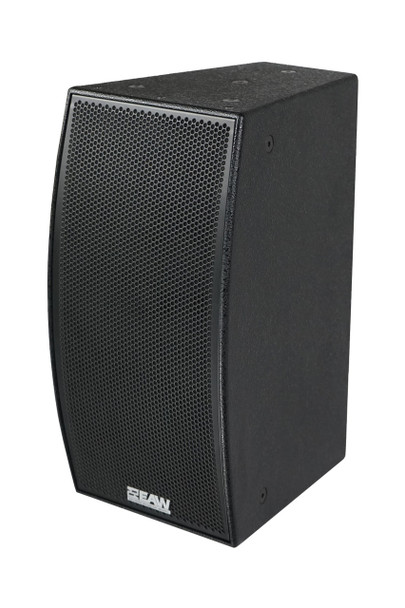

EAW MKD864PL-WP BLACK

The EAW MKD864PL‑WP BLACK is a high‑output, passive 2‑way installation loudspeaker designed for professional sound reinforcement in both indoor and outdoor environments. It is part of the MKD800 Series engineered for exceptional sound fidelity, consistent pattern control, and reliability across a wide variety of applications, from stadiums and theaters to clubs, corporate spaces, and architectural audio systems.

Key Features

Audio Performance

• Passive 2‑way high‑output design with dual 8″ woofers and a compression driver.

• Frequency response from approximately 62 Hz to 19 kHz for full‑range sound.

• Maximum sound pressure level up to 135 dB, capable of loud coverage without distortion.

• Nominal dispersion of 60° horizontal × 45° vertical, ensuring controlled, even coverage.

Install & Protection

• IP56 weather protection for use in outdoor environments and exposed installations.

• 12 M10 mounting points for flexible rigging options.

• Can be mounted vertically or horizontally using optional brackets.

• Durable Baltic birch enclosure provides long‑term reliability.
