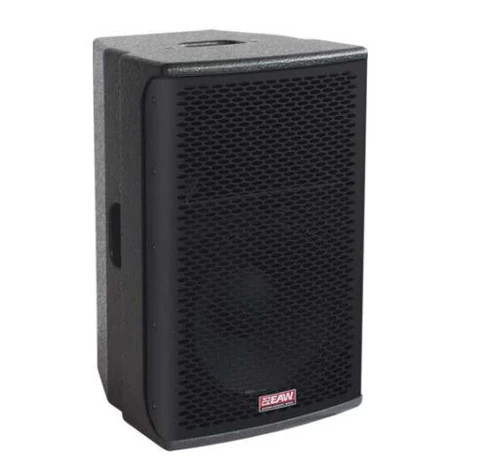

EAW QX394 BLACK

The EAW QX394 BLACK is a high‑output, passive two‑way loudspeaker designed for professional sound reinforcement. It belongs to the QX300 Series and uses a compact trapezoidal enclosure with advanced transducer design and broadband pattern control, making it suitable for medium‑throw applications such as arenas, live music venues, dance clubs, theaters, and other large spaces. Its robust performance and pattern control help tame difficult acoustical environments while delivering clear, full‑range sound from low to high frequencies. The QX394 can be used in either single‑amplifier or bi‑amplifier configurations, offering flexible installation options and reliable operation for fixed installations and touring systems.

Key Features

Design & Sound

• Passive two‑way loudspeaker with high‑efficiency components for powerful output.

• Broadband pattern control for consistent coverage and clarity in acoustically challenging spaces.

• Ultra‑efficient high‑frequency compression driver with 90° × 45° constant directivity horn (one of multiple horn patterns available).

• Four Phase‑Aligned™ 10‑inch low frequency cone transducers arranged in vertical and horizontal pairs for extended and coherent pattern control.

Performance

• Frequency response approx. 66 Hz to 20 kHz.

• Maximum sound pressure level around 142 dB peak.

• Capable of high output for medium‑throw coverage, suitable for large venues.
