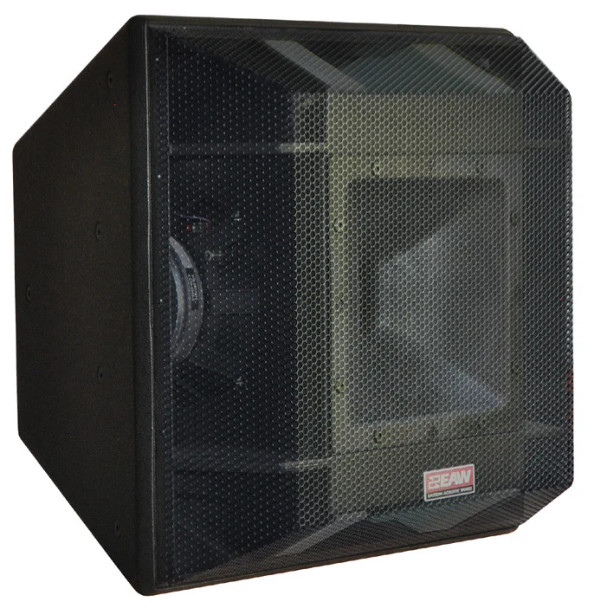

EAW QX396-WP BLACK

The EAW QX396‑WP BLACK is a high‑performance passive 2‑way full‑range installation loudspeaker designed for professional audio reinforcement. It is part of the QX300 Series from Eastern Acoustic Works and delivers high output, excellent dispersion control, and weather‑protected construction suitable for indoor and outdoor use.

Key Features

Sound Performance

• Passive two‑way loudspeaker with 1800 W power handling.

• Four Phase‑Aligned™ 10‑inch low‑frequency transducers arranged in vertical and horizontal pairs for coherent, uniform sound coverage.

• High‑efficiency compression driver with 4‑inch voice coil delivers clear high and midrange frequencies.

• 90° (horizontal) × 60° (vertical) constant directivity horn ensures precise pattern control across listening areas.

• Wide frequency range from approximately 66 Hz to 20 kHz for full‑range audio performance.

• Maximum sound pressure level (SPL) around 142 dB (peak) for powerful output in large spaces.
