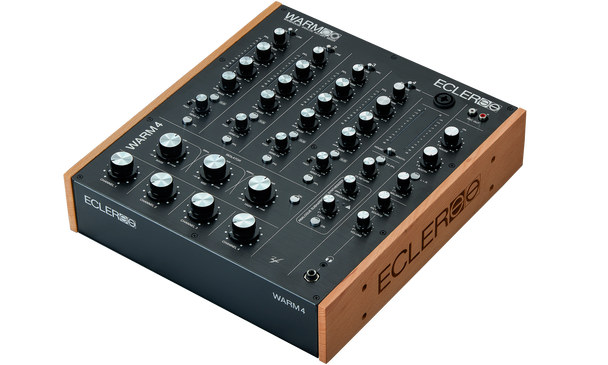

Ecler, WARM4 Analogue Rotary Mixer Unit, WARM-4

WARM4 Professional 4-Channel Rotary DJ Mixer

The WARM4 is a high-end 4-channel analogue rotary DJ mixer developed and manufactured by ECLER in Barcelona. Built for professional DJs and demanding sound environments, it combines classic rotary mixing with advanced analogue processing for deep, immersive sound control.

Designed with four phono/line channels and dual microphone inputs, the WARM4 delivers smooth, precise mixing ideal for extended sets and refined transitions. At the heart of its creative capabilities is a unique analogue subharmonic synthesizer, assignable per channel, which enhances and generates ultra-low frequencies—perfect for powerful club systems and bass-focused performances.

The mixer also features a 4th-order isolator and full-cut EQ, allowing DJs to shape and remove frequencies with precision. High-quality Alps potentiometers and solid aluminum knobs provide a premium tactile experience, while the robust construction ensures long-term reliability in professional environments.

With flexible FX routing, multiple output options, and detailed monitoring capabilities, the WARM4 is built to integrate seamlessly into club installations, festivals, and high-performance DJ setups.

Key Features:

• 4-channel analogue rotary DJ mixer
• 4 phono inputs and 4 line inputs for versatile source connection
• 2 microphone inputs (XLR and combo XLR/TRS)
• Master outputs via balanced XLR and RCA
• Booth outputs via XLR and RCA
• Headphone monitoring with 6.3 mm and 3.5 mm jacks
• 3-band full-cut EQ per channel
• 3-band isolator (300 Hz & 4 kHz, -∞ to +12 dB, 4th-order 24 dB/oct)
• Analogue subharmonic synthesizer for enhanced sub-bass (assignable per channel)
• High maximum output level with minimal distortion (21 dBV / 23 dBu)
• FX send with pre/post fader selection per channel
• FX return control with PFL monitoring
• Premium Alps metal shaft potentiometers for precise control
• Solid aluminum knobs with screw-free design
• Wooden side panels for a refined, classic look
• Rotary control layout for smooth and musical transitions

Technical Overview:

Inputs:

• Line 1–4: RCA stereo
• Phono 1–4: RCA stereo
• Mic 1: XLR (balanced)
• Mic 2: XLR/TRS combo (balanced)
• FX Return: RCA stereo

Input Sensitivity / Impedance:

• LINE: 0 dBV / 50 kΩ
• PHONO: -40 dBV / 50 kΩ
• MICRO: -50 dBV / >1 kΩ
• FX RETURN: 0 dBV / >6 kΩ

Performance & Monitoring:

• Rotary control with Alps Blue Velvet & RK09L potentiometers
• 18V phantom power (default ON)
• LED VU meters for input, master, booth, and subharmonic output levels

The WARM4 is engineered for environments where sound quality and low-frequency performance are critical. Its innovative subharmonic processing and refined analogue design provide DJs with powerful tools to shape the dancefloor experience, delivering depth, clarity, and impact in every mix.
