Focusrite ISA ADN8 8-chanardnel A/D C

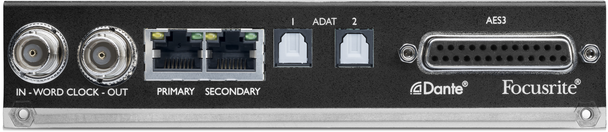

The Focusrite ISA ADN8 is an eight-channel A/D card that provides high-quality analog-to-digital conversion for the ISA 428 MkII and ISA 828 MkII mic preamps. It supports sample rates up to 24-bit/192kHz and offers Dante, AES3, and ADAT connectivity. The card includes primary and secondary RJ45 Dante ports, an AES59 DB-25 connector for AES3 output, and two TOSLINK connectors for ADAT output. Word Clock I/O via BNC connectors enables precise synchronization with other digital devices.

Key Features:

• 8 channels of high-quality analog-to-digital conversion for ISA 428 MkII and ISA 828 MkII

• Sample rates up to 24-bit/192kHz

• Redundant Dante connectivity via primary/secondary Ethernet ports with automatic switchover

• AES3 output via industry-standard 8-channel AES59 DB-25 connector

• Two TOSLINK connectors for ADAT output (8 channels at 96kHz, 4 channels at 192kHz)

• Word Clock I/O on BNC connectors for synchronization with external devices

• RedNet Control and Dante Controller software for computer-based routing—no hardware patching required
