Focusrite
Focusrite RedNet X2P 2x2 Ethernet Audio Digital IO with Mic Preamps
- SKU:
- AMS-REDNET-X2P
- UPC:
- 815301006336
Description
Description
The RedNet X2P is a compact, rugged 2-in / 2-out Dante audio interface. It features two Red Evolution mic preamps that handle mic, line, or instrument-level signals. Power, audio, clock, and remote control are carried over a single Ethernet cable via PoE, simplifying setup. The front panel includes a local input mixer for personalized monitoring mixes. Controls can be locked to prevent unwanted changes, and a stereo headphone amplifier provides robust drive for both low- and high-impedance headphones.
Key Features
| Feature | Description |
|---|---|
| Mic Preamps | 2 × Red Evolution mic pres with clean gain, phase invert, +48 V phantom, high-pass filter, and “Air” mode |
| Analogue I/O | 2 combo XLR / ¼″ inputs (mic/line/instrument) + 2 XLR line outputs |
| Dante Network | 2 × EtherCON ports for Dante audio + PoE power |
| Power | Powered via PoE or external 12 V DC supply |
| Monitoring | Local input mixer + crossfader for blending local vs network audio; headphone output with level control |
| Lockout | Control-lock feature to prevent local changes to mic pre or output settings |
| Conversion | High-performance A/D and D/A conversion, up to 24‑bit / 96 kHz, with >118 dB dynamic range |
Related Products
Focusrite
Focusrite RedNet HD32R Redundant Ethernet Networking
$2,499.99
The Focusrite RedNet HD32R 32-channel HD Bridge allows you to seamlessly connect your RedNet network to Pro Tools | HD or Pro Tools | HDX systems. Designed for live sound and broadcast environments,...
$2,499.99
Focusrite

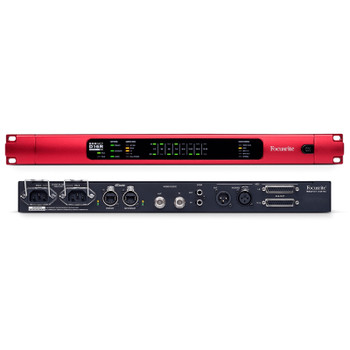

Focusrite RedNet D16R MkII 16x16 Dante Digital Audio Interface
