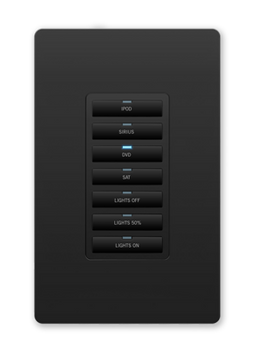

HPX-U400-R-MET-7E Metreau® 7-Button Ethernet Keypad Ramp Kit

The HPX-U400-R-MET-7E module is a Metreau 7-Button Ethernet Keypad in a ramped carrier, allowing it to be installed at an angle in a HydraPort® chassis for improved usability.

Features:

• Standard Ethernet Connectivity: Simplifies cabling and installation by reducing cable runs

• Button Configuration: Includes standard buttons 1–9, 0, ENTER, SAVE, and +/-

• Blue LED Indicators: Illuminate to confirm button selections, enhancing usability

• Flexible Bottom Button: Can function as a single button or split into two for added configuration options

Specifications:

• Dimensions: 4 HydraPort Units (see HPX-600, HPX-900, or HPX-1200 specifications for unit details)

• Power:

  • PoE: 802.3af, Class 0

  • Power Connector: 1 RJ-45 Ethernet Connector, 10/100

  • External Power Supply Required: PoE injector or switch (e.g., AMX PS-POE-AF-TC, FG423-83), not included

• Ethernet: 1 RJ-45 Ethernet Connector, 10/100

• Environmental:

  • Operating Temperature: 32° to 104° F (0° to 40° C)

  • Relative Humidity: 5% to 85%, non-condensing

  • Indoor use only

Front Panel Components:

• Pushbuttons with field-replaceable, pre-printed options

• Blue LEDs for activity indication

Rear Panel Components:

• 1 RJ-45 Ethernet Connector, 10/100

• 2 8-pin, 0.100” (2.54 mm) IDC-type male headers

FG Number: FG565-13-BL-00
