Ilumipanel LL - Asymmetrical Spread Filter

A rugged outdoor linear wash fixture from Iluminarc (Chauvet Professional), the ILUMIPANEL LL with ASYM filter delivers a controlled asymmetrical beam ideal for façade and wall illumination.

? Key Features

• 36×20â?¯W RGBL (quad-color) LEDs: Offers vibrant colors and clean whites thanks to the lime-enhanced spectrum

• Asymmetrical Beam (37° × 12°): Optimized for wide yet low vertical coverage—perfect for seamless wall washes without light trespass

• High Output:

  • ~16,970â?¯lumens total flux

  • ~2,605â?¯lux at 5â?¯m

• Weatherproof Build:

  • IP67-rated, cast-aluminum housing with impact-resistant glass

  • IK10 rated for high durability outdoors

• Power & Control:

  • 100–277â?¯VAC input, ~450â?¯W power draw

  • DMXâ??512/RDM control, plus standalone modes and 16â??bit dimming

  • Operating range: −40â?¯°C to +45â?¯°C

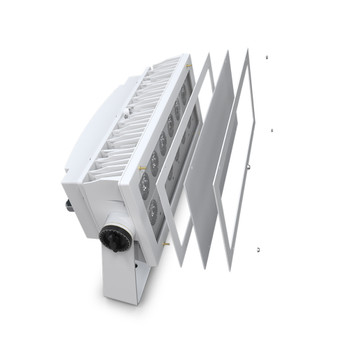

• Filter Integration:

  • The ASYM filter installs without breaking the IP seal
