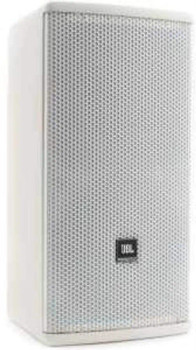

JBL AM7212/64 2-Way Loudspeaker System with 1 x 12 " LF Speaker (White)

The AM7212/64 is a high-power, lightweight, two-way full-range loudspeaker featuring JBL’s Differential Drive 2262H low-frequency driver—a 300 mm (12 in) unit with dual voice coils and dual magnetic gaps—and the 2432H high-frequency compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil. It utilizes a large-format Progressive Transition waveguide that delivers precise 60° x 40° coverage. The waveguide can be rotated, allowing the speaker to be installed in either vertical or horizontal positions. High-slope passive crossover networks reduce frequency overlap between drivers, while the controlled off-axis response improves performance in array configurations.
