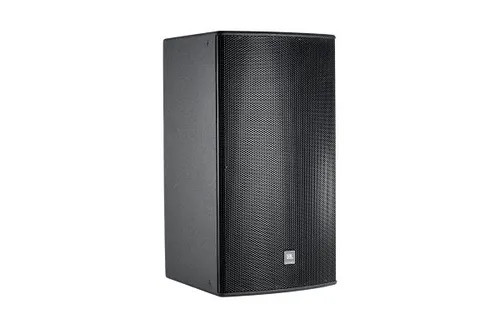

JBL AM7315/64 - 600W 15-inch Passive 3-Way Installation Loudspeaker with 60 x 40-Degree Coverage

The JBL Professional AM7315/64 is a high-performance, 3-way passive installation loudspeaker system, engineered to deliver exceptional sound quality and coverage for fixed installation applications. It features a robust design with a 15-inch Differential Drive low-frequency driver (2265H), an 8-inch CMCD cone midrange compression driver, and a 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil high-frequency compression driver (2437H). This combination of advanced components ensures the AM7315/64 provides excellent performance across the entire frequency spectrum, from deep bass to clear highs, while minimizing distortion. The system is equipped with JBL's multi-band Progressive Transition (PT) waveguide, offering 60° x 40° coverage with low distortion and well-controlled directivity, making it ideal for a variety of professional audio applications.

Features

• High-performance 3-way passive loudspeaker with 15-inch low-frequency driver, 8-inch midrange driver, and 1.5-inch exit high-frequency compression driver
• Multi-band PT Progressive Transition waveguide for 60° x 40° coverage with low distortion and excellent pattern control
• Rotatable waveguide for vertical or horizontal orientation, ensuring flexibility in installation
• Bi-amp/tri-amp switchable, with passive crossover frequency at 1.2 kHz
• System frequency range: 34 Hz to 20 kHz (-10 dB), 40 Hz to 20 kHz (±3 dB)
• Maximum SPL: 128 dB-SPL continuous average (134 dB peak) in tri-amp mode, 124 dB-SPL continuous average (130 dB peak) in bi-amp mode
• System sensitivity: 108 dB SPL (1W @ 1m) in bi-amp mode
• Advanced JBL Differential Drive low-frequency driver (2265H) and CMCD cone midrange compression driver for low distortion and increased sensitivity
• Trapezoidal enclosure with 16 mm (5/8 in) Finnish birch plywood construction, coated with JBL's DuraFlex finish
• 13 M10 threaded suspension points for flexible and secure mounting
