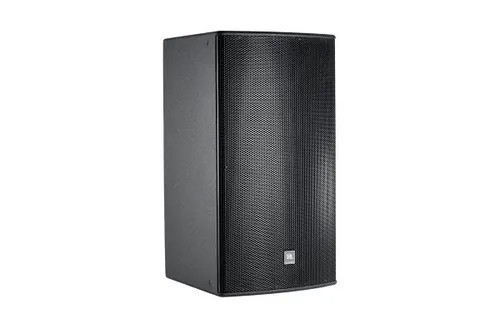

JBL AM7315/95 - 600W 15-inch Passive 3-Way Installation Loudspeaker with 90 x 50-Degree Coverage

The JBL Professional AM7315/95 is a high-performance 3-way passive loudspeaker designed to deliver superior sound quality for a wide range of fixed installation applications. This powerful loudspeaker system is built with JBL's renowned Differential Drive technology, featuring a 15-inch low-frequency driver (2265H), an 8-inch CMCD cone midrange compression driver, and a 1.5-inch exit, 3-inch voice-coil high-frequency compression driver (2437H). The combination of these advanced drivers ensures excellent low-frequency extension, clear midrange reproduction, and crisp high-frequency output,

Features

• 3-way passive loudspeaker with 15-inch low-frequency driver, 8-inch CMCD cone midrange compression driver, and 1.5-inch exit high-frequency compression driver
• 90° x 50° coverage pattern with rotatable waveguide for flexible positioning in either vertical or horizontal orientation
• Switchable bi-amp/tri-amp operation with crossover frequencies at 300 Hz and 2.2 kHz for optimized driver performance
• Frequency range: 38 Hz to 20 kHz (-10 dB), 45 Hz to 18 kHz (±3 dB)
• Maximum SPL: 141 dB peak in tri-amp mode, 129 dB peak in bi-amp mode
• System sensitivity: 108 dB SPL (1W @ 1m) for the MF/HF section in bi-amp mode
• Durable trapezoidal enclosure made from 16 mm (5/8 inch) exterior-grade 11-ply Finnish birch plywood with JBL's DuraFlex finish
• IP-x3 rated for water resistance, suitable for both indoor and outdoor installations
• 13 M10 threaded suspension points for flexible mounting options
