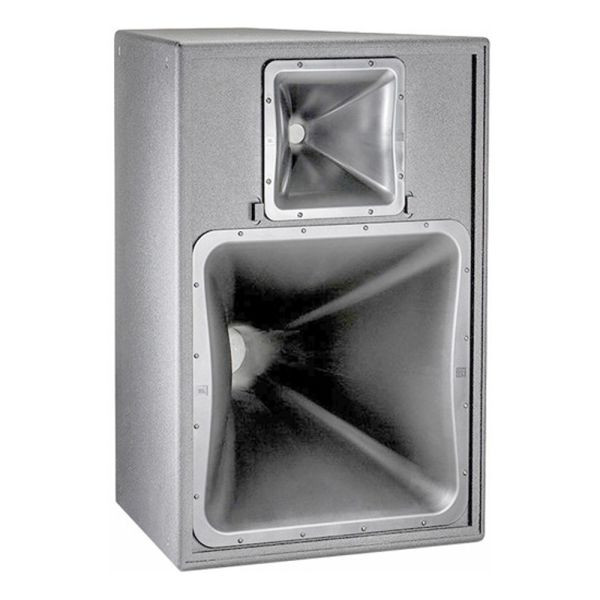

JBL PD6200/64 Passive/Biamp Two-Way Mid-/High-Frequency Loudspeaker (White)

The JBL Professional PD6200/64-WH is a 300W 8-inch passive 2-way horn-loaded loudspeaker designed for high-output applications where excellent pattern control and consistent sound coverage are crucial. Featuring a 60° x 40° coverage pattern, the PD6200/64-WH delivers outstanding sound clarity and precision, making it ideal for use in large venues, theaters, concert halls, or other demanding environments that require high-performance sound reinforcement.

Features

• 300W passive 2-way horn-loaded loudspeaker with 8-inch midrange driver
• CMCD-82H cone midrange compression driver with Differential Drive dual voice coil for high sensitivity and low distortion
• 2432H high-frequency compression driver with neodymium magnet and aluminum diaphragm for clear, intelligible high-frequency projection
• 60° x 40° coverage pattern with PT Progressive Transition waveguides for smooth, consistent sound
• Rotatable waveguides for flexible horizontal or vertical cabinet orientation
• Bi-amp and passive crossover modes with a 1.5 kHz crossover point for optimal integration
• Frequency range of 200 Hz to 18 kHz with a frequency response of 240 Hz to 16 kHz
• Maximum SPL of 135 dB-SPL continuous (141 dB peak) in both bi-amp and passive modes
• Durable, trapezoidal enclosure made from 16 mm exterior-grade Finnish birch plywood
