Description

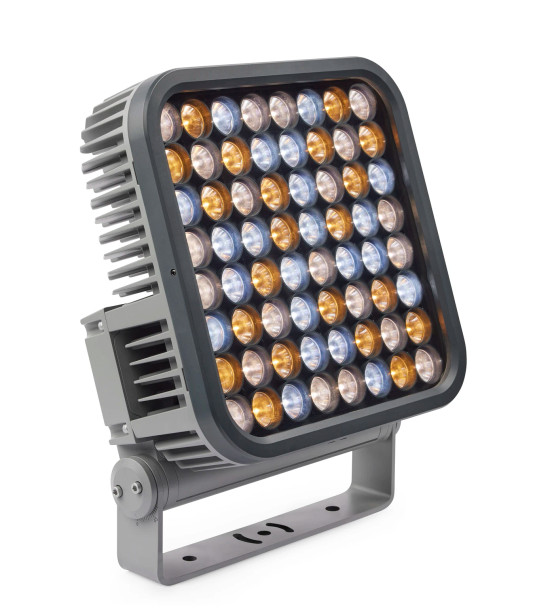

This fixture is part of the “Exterior Wash Pro” family for outdoor architectural lighting. The XL CTC version (P/N MAR‑90590016) is built for large‑scale, permanent installations such as building facades, bridges, stadiums and other exposed environments. It combines high output, configurable optics and robust outdoor durability.
Key Features
-
Dedicated colour‑temperature control from 2 400 K to 6 500 K (warm to cool white) rather than full RGB mixing.
-
Compact, slim design in the XL housing class (175 mm length × 351 mm width × 438 mm height; weight ≈ 17.7 kg).
-
Very high output: roughly 8,200 lm at 2,400 K, 17,000 lm at 4,000 K, 13,000 lm at 6,500 K.
-
Beam control options: native narrow beam (~7°) plus optional micro‑lens diffusers: 9°, 15°, 30°, 50° or asymmetric 8°×60°.
-
Weatherproof and rugged: housing cast aluminium, IP66 rating (dust and weather‑tight), impact rating IK08, corrosion rating C5 High (suitable for harsh environments).
