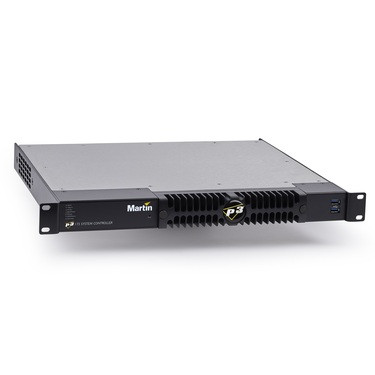

Martin P3‑175 System Controller

The Martin P3‑175 System Controller is part of the P3 family of system controllers from Martin, designed to enable lighting and video-based control of fixtures in professional entertainment and architectural installations. It allows fixtures to be mapped, patched, addressed and configured through a visual canvas instead of manually addressing each fixture on‑site. It supports mixing DMX/Art‑Net/sACN control with video input, enabling both “pixel‑mapped” video looks and traditional lighting control workflows. It integrates with the P3 ecosystem for real‑time visualization, monitoring and system‑wide synchronization.

Key Features

• Accepts full HD video input via HDMI and NDI (up to 1920×1080) for driving video content into the lighting system.

• Supports up to 256 universes of Art‑Net / sACN input for large scale control.

• Drives up to 520,000 pixels across up to 2,000 fixtures on one P3‑175 system.

• Provides a 1U rack‑mount form‑factor (19″) suitable for professional rigging.

• Enables mapping of fixtures onto a visual canvas (using libraries or discovered devices) for intuitive layout and patching.

• Includes the ability to export/import mapping and patching data via MVR for integration with consoles, CAD, visualizers.
