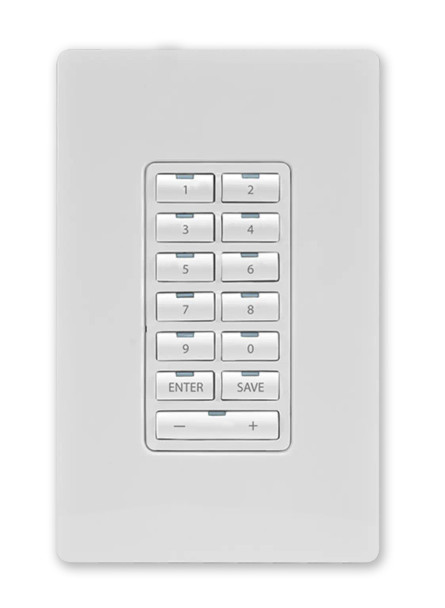

MET-13E Metreau® 13-Button Ethernet Keypad WHITE

The MET-13E Metreau 13-Button Ethernet Keypad features a total of 13 buttons—12 single-width buttons and one double-width button—and can be used as a standalone keypad or combined with 7- or 13-button Metreau Ethernet Expansion Keypads. It connects to the controller over Ethernet, streamlining both installation and system connectivity.

Features:

• Standard Ethernet Connectivity: Reduces cabling requirements and simplifies installation

• Daisy-Chain Support: Allows up to three keypads to share a single IP address

• Decorator-Style Fit: Designed to mount in standard decorator-style wall plates for a clean appearance

• Blue LED Indicators: Provide clear visual confirmation of button selection

• Configurable Bottom Button: Can function as one wide button or two separate buttons for added flexibility

Note: Keypad wall plates are not included. Refer to ALD-CW-1, ALD-CW-2, and ALD-CW-3.

Specifications:

• Dimensions (H × W × D): Keypad and mounting plate: 4" × 1 3/4" × 1" (10.3 cm × 4.5 cm × 2.5 cm)

• Mounting: Fits standard decorator-style wall plates

• Front Panel Components: Field-replaceable, pre-printed pushbuttons with blue LED indicators

• Rear Panel Components:

  • 1 RJ-45 Ethernet connector, 10/100

  • 2 8-pin, 0.100" (2.54 mm) IDC-type male headers

• Power: PoE (Power over Ethernet), 802.3af, Class 0

• Power Connector: 1 RJ-45 Ethernet connector, 10/100
