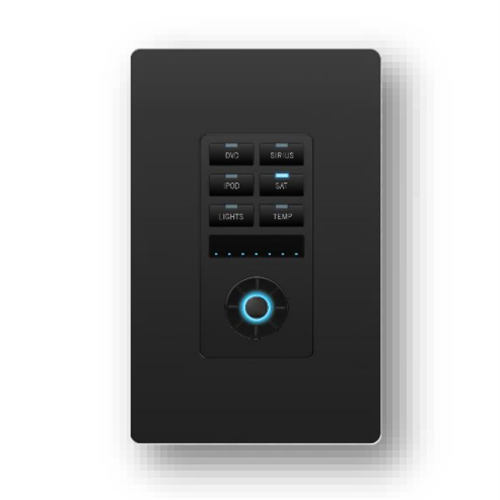

MET-6NE Metreau® 6-Button Ethernet Keypad with Navigation BLACK

The MET-6NE Metreau 6-Button Ethernet Keypad with Navigation provides intuitive source control through six buttons, a multifunction navigation wheel, and an LED bar for clear visual level feedback. The navigation wheel supports level adjustment as well as up, down, left, right, and select functions, enabling efficient system control. The MET-6NE can be deployed as a standalone keypad or paired with 7- or 13-button Metreau Ethernet Expansion Keypads. Ethernet connectivity simplifies both installation and system integration.

Features:

• Ethernet Connectivity: Uses standard Ethernet protocols to reduce cabling and simplify installation

• Daisy-Chain Capability: Supports connection of up to three keypads using a single IP address

• Decorator-Style Compatibility: Fits standard decorator-style wall plates for a clean, professional appearance

• Blue LED Indicators: Illuminate to confirm button selections and enhance usability

• Integrated Navigation Wheel: Provides straightforward, responsive control

Note: Keypad wall plates are not included. Refer to ALD-CW-1, ALD-CW-2, and ALD-CW-3.

Specifications:

• Dimensions (H × W × D): Keypad and mounting plate: 4" × 1 3/4" × 1" (10.3 cm × 4.5 cm × 2.5 cm)

• Mounting: Fits standard decorator-style wall plates

• Front Panel Components: Field-replaceable pre-printed pushbuttons with blue LED indicators, navigation wheel, light-level feedback, sensor

• Rear Panel Components:

  • 1 RJ-45 Ethernet connector, 10/100

  • 2 8-pin, 0.100" (2.54 mm) IDC-type male headers

• Power: PoE (Power over Ethernet), 802.3af, Class 0

• Power Connector: 1 RJ-45 Ethernet connector, 10/100
