MKP-106 6-Button Massio Keypad (US, UK, EU) WHITE

The MKP-106 6-Button Massio Keypad is a keypad-only counterpart to the MCP-106 Massio ControlPad, offering the same refined Massio design without an integrated controller. It delivers a modern, intuitive control interface that can function either as a secondary user interface or as the primary control point in rooms where a separate controller is already installed.

Designed with large, easy-to-read buttons and a sleek aesthetic, the MKP-106 enables users to execute complex room functions with a single button press, making it ideal for meeting rooms and classrooms. Ethernet connectivity streamlines installation while providing reliable communication with the control system.

Common Applications

• Small NetLinx-controlled spaces that require custom programming and access to additional controller ports while maintaining a consistent user experience with RPM-enabled Massio ControlPads

• Massio-equipped rooms needing an additional interface, allowing the MKP-106 to operate as a client keypad in the same form factor as the Massio ControlPad

Key Features

• Consistent Massio Aesthetics and Form Factor – Matches the appearance, size, and style of existing Massio ControlPads for a unified installation

• Massio Design for Custom Rooms – Extends the Massio user interface to rooms that use a separate controller

• Power over Ethernet (PoE) Connectivity – Simplifies wiring, reduces cable runs, and eliminates the need for local power at the keypad location

Specifications

• Dimensions (H × W × D):

  • Portrait: 4 11/16" × 3 7/16" × 9/16" (119 × 87.5 × 13.9 mm)

  • Landscape: 3 7/16" × 4 11/16" × 9/16" (87.5 × 119 × 13.9 mm)

• Weight: Approx. 0.25 lb (0.11 kg)

• Mounting: Standard 1-gang US, UK, or EU back boxes

• Power:

  • Typical Consumption: 4.5 W

  • Voltage: 37–57 VDC via PoE (IEEE 802.3af)

  • Connector: (1) RJ-45 Ethernet

• Memory:

  • Flash: 4 GB

  • SD Card: 4 GB

  • DDRAM: 256 MB

• Programming Port: (1) USB Mini-B

• ID Pushbutton: Restores factory settings, reloads factory image, and switches between DHCP and static IP addressing

FG Numbers

• FG5793-06P-W – Portrait, White

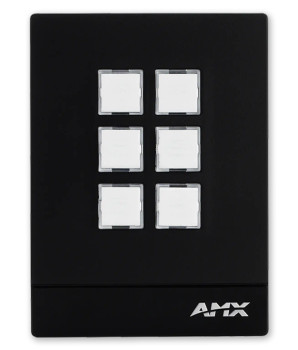

• FG5793-06P-BL – Portrait, Black

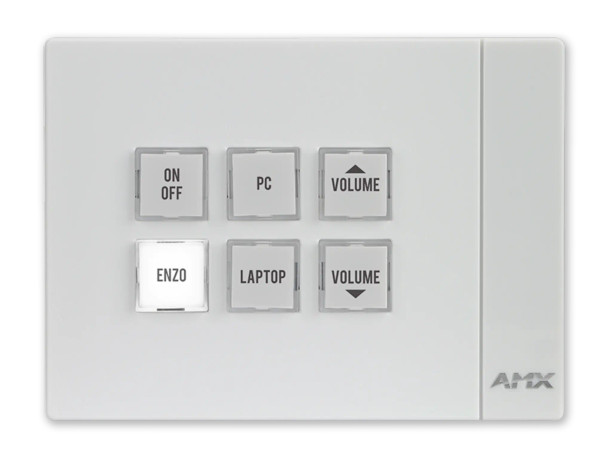

• FG5793-06L-W – Landscape, White

• FG5793-06L-BL – Landscape, Black
