MR40

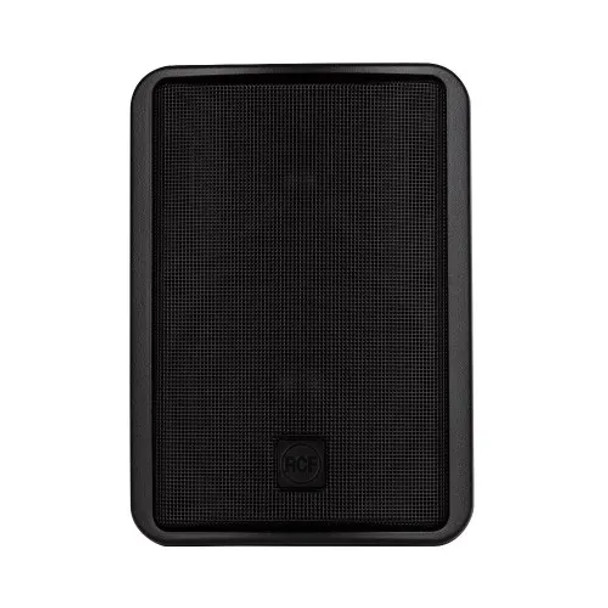

RCF MR 40 — Description

The RCF MR 40 is a compact passive two-way loudspeaker designed for clear and consistent sound in small to medium-sized spaces. It features a durable bass-reflex cabinet that delivers balanced audio for both speech and music. The MR 40 is weather-resistant (IP55-rated), making it suitable for both indoor and outdoor installations such as cafes, offices, classrooms, and retail spaces.

Key Specifications

• Type: Passive two-way bass-reflex speaker

• Power Handling (RMS): 40 W

• Peak Power: 160 W

• Frequency Response (–10 dB): 70 Hz – 20,000 Hz

• Maximum SPL @ 1 m: 108 dB

• Sensitivity: 86 dB

• Coverage Angle: 110° horizontal × 100° vertical

• Drivers:
   • 4″ woofer with 1″ voice coil
   • 1″ dome tweeter with 0.8″ voice coil (neodymium)

• Nominal Impedance: 8 ohms

• Crossover Frequency: 3,000 Hz

• Cabinet Material: Robust plastic polymer

• Weather Protection: IP55 rating (suitable for outdoor use)

• Mounting Options: Swivel wall bracket and M6 mounting points included

• Dimensions (H × W × D): 216 mm × 154 mm × 135 mm (8.5″ × 6.1″ × 5.3″)

• Weight: 2.2 kg (4.85 lbs)
