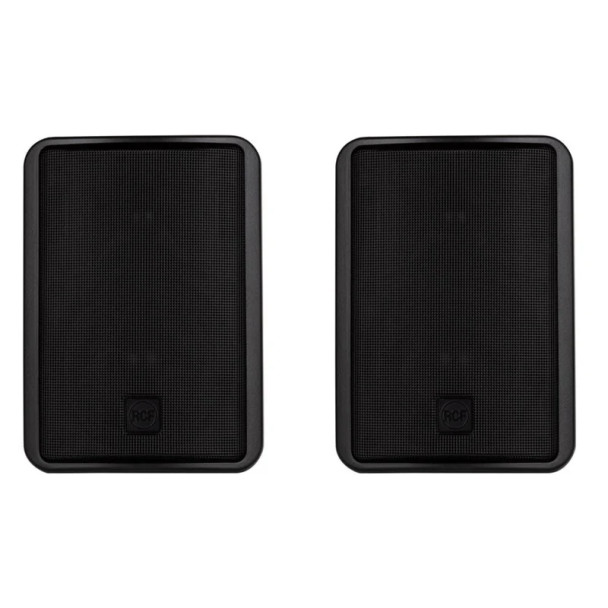

MR40-T

The RCF MR 40-T is a compact two-way passive loudspeaker featuring a built-in line transformer, allowing it to connect easily to 70V or 100V audio lines while maintaining excellent sound quality. It combines a 4-inch woofer and a 1-inch dome tweeter in a weather-resistant enclosure suitable for both indoor and outdoor use.

Key Specifications

• Type: Passive two-way bass-reflex speaker with line transformer

• Power Handling (RMS): 40 W

• Peak Power: 160 W

• Frequency Response (–10 dB): 70 Hz – 20,000 Hz

• Maximum SPL @ 1 m: 108 dB

• Sensitivity: 86 dB

• Coverage Angle: 110° horizontal × 100° vertical

• Drivers:
   • 4″ woofer with 1″ voice coil
   • 1″ dome tweeter with 0.8″ voice coil

• Nominal Impedance: 8 ohms

• Crossover Frequency: 3,000 Hz

• Line Transformer Taps (100V): 40 W / 20 W / 10 W / 5 W

• Cabinet Material: Weather-resistant plastic polymer

• Weather Protection: IP55 rating (outdoor capable)

• Mounting Options: Swivel wall bracket and M6 mounting points included

• Dimensions (H × W × D): 216 × 154 × 135 mm (8.5″ × 6.1″ × 5.3″)

• Weight: 2.4 kg (5.3 lbs)

• Color Options: Black (MR 40-T) / White (MR 40-TW)
