MSD-1001-L2

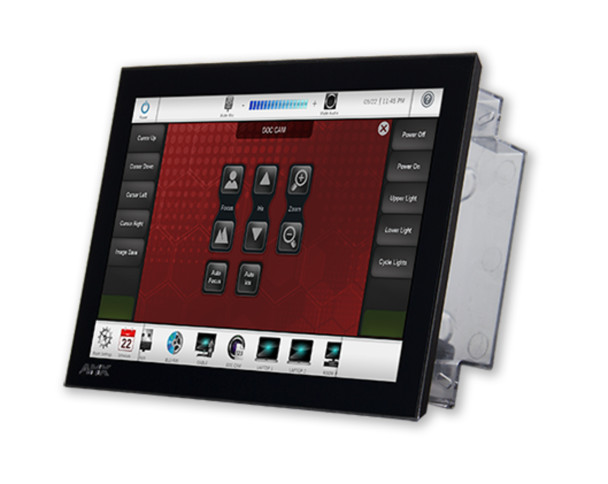

AMX MSD‑1001‑L2 (FG2265‑31) — 10.1″ Modero S Series Wall Mount Touch Panel

Description:
The MSD‑1001‑L2 is a 10.1″ landscape wall-mount touch panel from the Modero S Series, designed for AV control, room scheduling, and user interface tasks in commercial environments such as conference rooms, classrooms, and meeting spaces. It features a responsive touchscreen and smooth visual graphics for intuitive control.

Key Features:

• 10.1″ touchscreen with 1280×800 resolution and 24‑bit color depth.

• Powered over Ethernet (PoE) for simplified installation.

• Supports streaming video and VoIP.

• SmoothTouch™ interface and advanced graphics engine for responsive feedback.

• Built-in room availability bar for scheduling status (green/red).

Physical Specifications:

• Dimensions: ~6.8″ (H) × 10.0″ (W) × 2.0″ (D) with backbox.

• Weight: ~1.5–1.95 lbs (panel only / with backbox).

• Mount: Wall mount with optional accessories (Multi Mount Kit, Backbox, Rough-In Box).

Typical Uses:

• Conference room control interface

• Room scheduling panel

• Unified AV system control surface
