MT830CH-TH

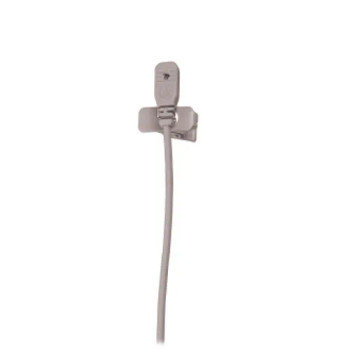

The MT830cH-TH is a miniature omnidirectional condenser lavalier microphone. It is designed for use with body-pack wireless transmitters that accept a screw-down 4-pin “cH-style” connector. The housing is very small and discreet, making the mic suitable for applications such as lectures, theatre performances, television on-screen talent, and live stage use.
It comes with an attached cable of approximately 4.6 ft (1.4 m) that terminates in the aforementioned connector.

Key Features

• Omnidirectional polar pattern: picks up sound from all directions fairly uniformly, which helps maintain consistent response regardless of mic orientation.

• Frequency response approx. 30 Hz to 20 kHz: offering wide-range capability, covering both low and high frequencies cleanly.

• Maximum sound pressure level (SPL) is up to around 135 dB (depending on source) — enabling it to handle loud sound sources without distortion.

• Output impedance approximately 200 ohms.

• Colour: “Theatre-Beige” version (blend into skin/wardrobe) in this model variant.

• Includes accessories such as a clothing clip and windscreens.

• Lightweight design: mic capsule and cable weigh very little (approx. 1.3 g or 0.05 oz for the capsule alone in some specs).

• Specifically terminated for compatibility with “cH-style” wireless pack transmitters: i.e., a screw-down 4-pin connector (Hirose style) for secure connection.
